This guide gives an in depth explanation of replacing the auxiliary port in the Insignia Bluetooth Speaker. Read if you want step by step instructions on how to replace the auxiliary port. If you have any physical disability in your hand, wrist, or arm please consider having a different individual because these tasks require steady hands.
Ersatzteile
-
-

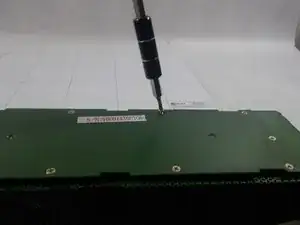

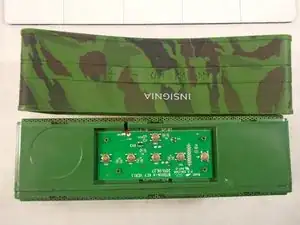

Remove the back cover. Be careful to not lose any of the screws because they are extremely small and can be easily lost.
-
-
-

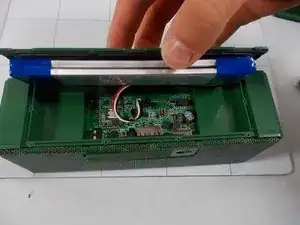

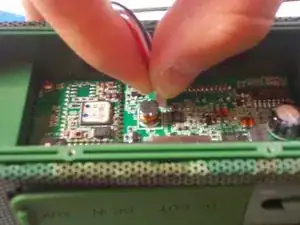

The battery will be attached to the back cover with sticky tape. Unplug the wires connecting the battery to the speaker.
-
-
-

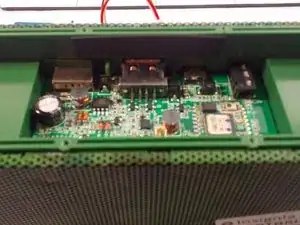

Once the battery and back cover have been successfully removed, use the sauter by placing the soldering iron on one side of the auxiliary port button.
-
-
-

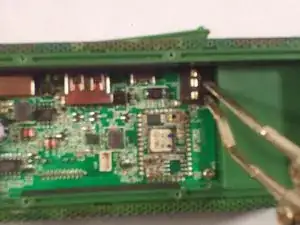

Once the metal is heated, use a pair of tweezers to grab the part and pull it off of the circuit board. Be careful not to alter the circuit board in any way with the heat. Also, be careful when removing the part because the metal will be very hot.
-
-
-
Once the switch has been removed from the circuit board, place the new switch in the same spot as the old one.
-
-
-
After the new piece is properly melted into place, put the battery and back cover onto the device and screw the cover back on using the specified screwdriver and the ten screws.
-
-
-

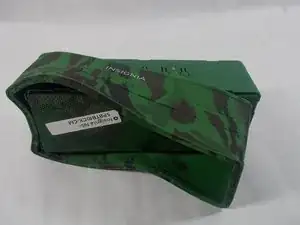

Place the rubber sleeve back on the device. Be sure to line up the sleeve with the proper functions for a correct fit.
-
To reassemble your device, follow these instructions in reverse order.
