Insignia NS-SPBTBRICK-CM Back Cover and Battery Replacement

Geschrieben von: Erin Steele
  • Kommentare: 0
Insignia NS-SPBTBRICK-CM Back Cover and Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

30 Minuten

Einleitung

Make sure the device is powered off before you start following the instructions. If you have a physical disability with your hand, wrist, or arm consider having a different individual help you because the tasks require steady hands. Be sure to work on a flat surface and to not lose any of the small parts because they are very small and can be lost easily.

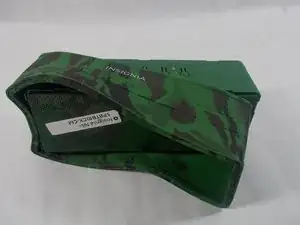

  1. KRk513qhhhNDoM2l

    • Remove the rubber sleeve.

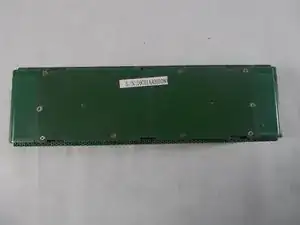

  2. 6sfHiCWDnLmMIKKt
    6sfHiCWDnLmMIKKt
    pfySMUDditPLWqcX

    • Use the specified screwdriver to unscrew the ten screws on the back cover.

  3. NqXMYVoNHAqhS2ia
    NqXMYVoNHAqhS2ia
    CnG6y2NH2yHyKLaQ

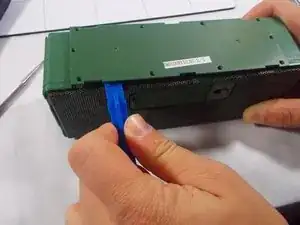

    • Remove the back cover. Be careful to not lose any of the screws because they are extremely small and can be easily lost.

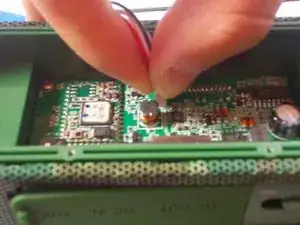

  4. 4xZZue4ROrvd5GyW
    4xZZue4ROrvd5GyW
    YYpwKoodrORiHDKC

    • The battery will be attached to the back cover with sticky tape. Unplug the wires connecting the battery to the speaker.

    • Using one of the four blue opening tools, pry the battery off of the back cover.

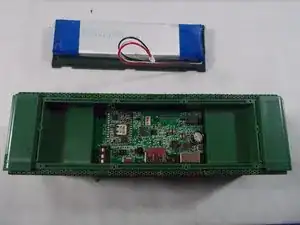

  6. My16OMRiES56URpE

    • Stick the new battery to the back cover using sticky tape.

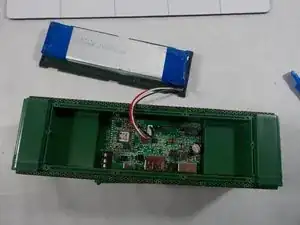

  7. IQRkcKUgwXI2kvWf

    • Connect the wire from the new battery to the bluetooth speaker.

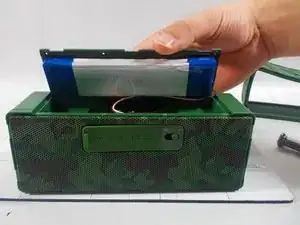

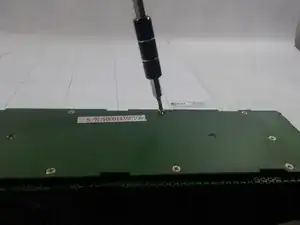

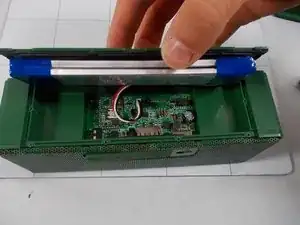

  8. LLrriPyJI4UFQvgn
    LLrriPyJI4UFQvgn
    WyiyelrGmMqolxCj
    eueK61O5HSDSNTQD

    • Place cover back on and using the iFixit screwdriver PH000, screw the ten screws back onto the back cover.

Abschluss

To reassemble your device, follow these instructions in reverse order.
