Einleitung
The Insignia 2-in-1 Handheld/Stick vacuum, over time, will lose its ability to work for extended amounts of time. Use this guide to access the battery for replacement and troubleshooting.
Werkzeuge
-
-

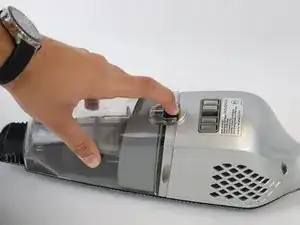

Push down the black button to release the dust cup.
-

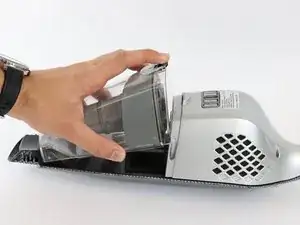

Pull the dust cup up and away from handheld portion to remove.
-
-
-

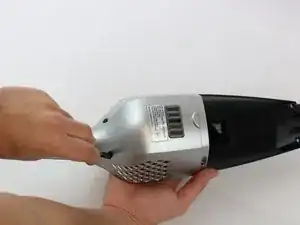

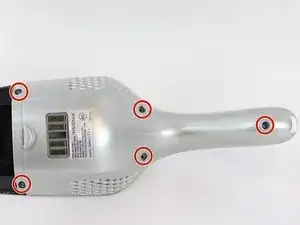

Remove the five 12.0 mm screws on the back of the handheld portion using the Phillips #2 screwdriver.
-

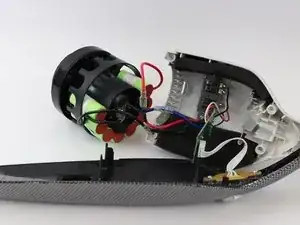

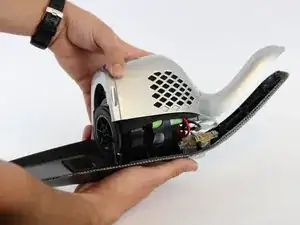

Lift the silver cover off of the black body of the handheld portion to expose the battery and wiring.
-
-
-

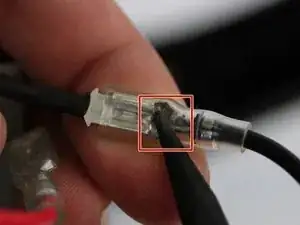

Remove the tape holding the battery to the black housing.
-

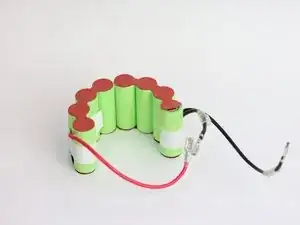

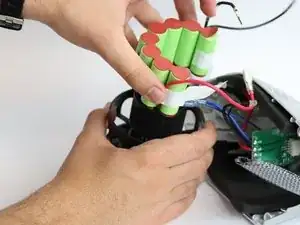

Slide the entire battery bundle out.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
