Einleitung
The Insignia 2-in-1 Handheld/Stick vacuum can lose its ability to create suction. Use this guide to access the vacuum's motor for replacement and troubleshooting.
Werkzeuge
-
-
Push down the black button to release the dust cup.
-
Pull the dust cup up and away from handheld portion to remove.
-
-
-
Remove the five 12.0 mm screws on the back of the handheld portion using the Phillips #2 screwdriver.
-
Lift the silver cover off of the black body of the handheld portion to expose the battery and wiring.
-
-
-
Remove the tape holding the battery to the black housing.
-
Slide the entire battery bundle out.
-
-
-

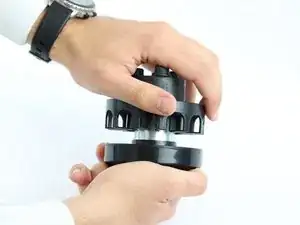

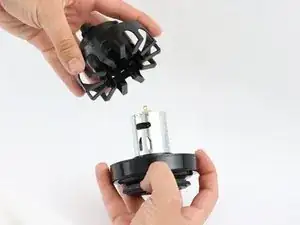

Twist and pull black casing off of the motor, leaving the motor and irremovable black impeller housing.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
