Insignia NS-VCS14SL7 Power Button Replacement

Geschrieben von: Thibaut Pillot
  • Kommentare: 2
Insignia NS-VCS14SL7 Power Button Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

2 Minuten

Einleitung

The Insignia 2-in-1 Handheld vacuum button may get jammed or the electrical components can stop working. In either case, this guide can show you how to fix or replace the power button.

  1. RNDejqQl6ITQbfvi
    RNDejqQl6ITQbfvi
    o3jhyS4WuD1kDKx1

    • Push down the black button to release the dust cup.

    • Pull the dust cup up and away from handheld portion to remove.

    Where can I buy battery ?

    Insignia NS-VCS14SL7 Battery …?

    Dinesh Patel -

    Sir

    Where can I buy battery ?

    Insignia NS-VCS14SL7 Battery …?

    Please let me know otherwise I have to junk this vacuum

    Thx

    Dinesh Patel -

  2. gJiKDWaVKQHUMhGK
    gJiKDWaVKQHUMhGK
    OBGI3iFPmhoqlXhB
    WfUGeHuGpSHWfUYK

    • Remove the five 12.0 mm screws on the back of the handheld portion using the Phillips #2 screwdriver.

    • Lift the silver cover off of the black body of the handheld portion to expose the battery and wiring.

  3. unRND5Jka1atOOHc
    unRND5Jka1atOOHc
    MMa6TbHEA4IBhDeQ

    • Pull apart the red and black wires.

    • Do so for all of the wires. (Red x1, Black x2)

  4. SDVGPwcCBrCn35AX

    • Remove the tape holding the battery to the black housing.

    • Slide the entire battery bundle out.

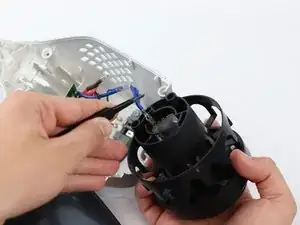

  5. wkOrRWPjxlCLvnTv

    • Remove motor and impeller housing to gain access to power button.

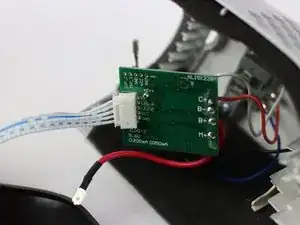

  6. hnbHJABrCsKHXFLI
    hnbHJABrCsKHXFLI
    XkAgkcm5QLle1mWC

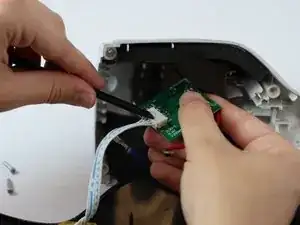

    • Pry upwards on the retaining clip with black plastic spudger and pull to remove the 5 pin connector.

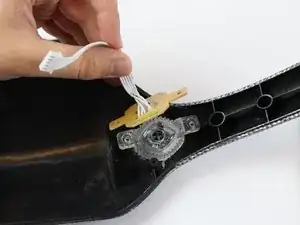

  7. 2N1PCSg6HGXPBJBX
    2N1PCSg6HGXPBJBX
    kARWNMiV2TipBHlE

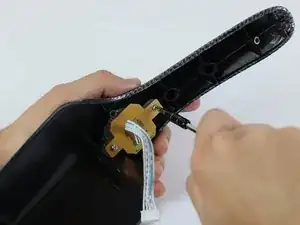

    • Remove the two 10mm Philips #2 screws holding the brown printed circuit board to the vacuum.

    • Remove brown printed circuit board.

    • Pull up on clear plastic power button assembly to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
