Einleitung

The Insignia 2-in-1 stick vacuum power button can suddenly stop working or become jammed. In either case, use this guide to fix or replace the power button.

  1. eUidyAKNIUnNyaiU
    eUidyAKNIUnNyaiU
    ZlZwOCr1vDnWOZXN
    PaBNAbNiVvVdC1AS

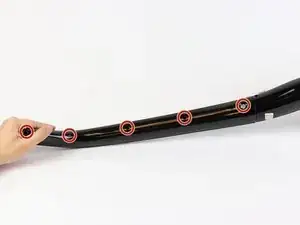

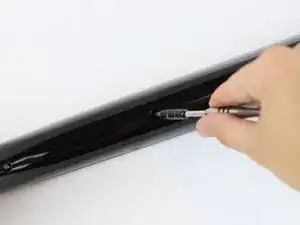

    • Remove the four 12mm Phillips screws , and the one large 32mm Phillips head bolt from the vacuum handle.

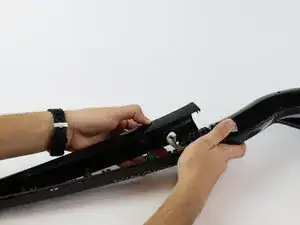

    • Pull up on the back cover of the vacuum handle and remove it.

  2. OFBTeXZHTGfnQVQE
    OFBTeXZHTGfnQVQE
    OeWiGV11gQ1POxEj
    JnZpro5LruWJMDlA

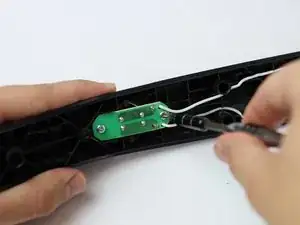

    • Remove the two 10mm Phillips #2 screws on the back of the green printed circuit board.

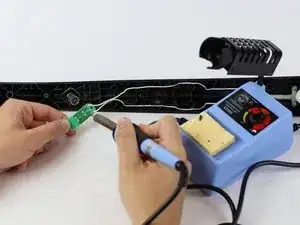

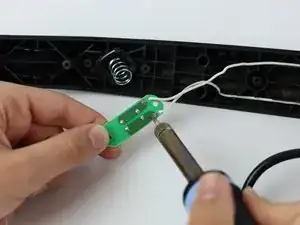

    • If the circuit board needs to be replaced, locate where the two white wires are soldered to the board, and de-solder the connection.

Abschluss

To reassemble your device, follow these instructions in reverse order.
