Unresponsive Play/Pause Button? Need to switch it out? This guide will show you how to remove the Play/Pause Button. This guide has a few tricky parts, but if you follow along you should have it off in no time.
Werkzeuge
-
-

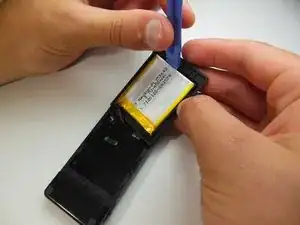

Use the plastic opening tool to reach underneath the battery, opposite from the side with the red wire, and remove it from its plastic case.
-
-
-

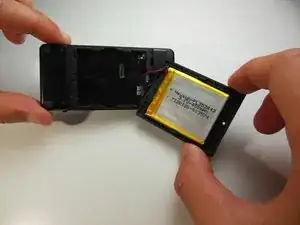

Reach under the white plastic wire connector using the plastic opening tool and disconnect it from the socket.
-
-
-

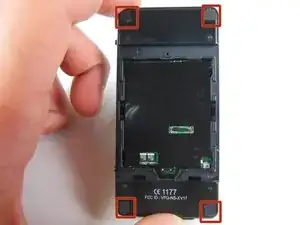

Remove the four corner plastic covers on the back of the device using the plastic opening tool.
-
-
-

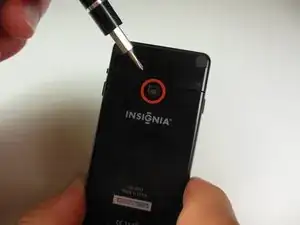

Using a Philips #00 screwdriver remove all four 4.5mm corner screws located underneath the corner pads.
-
-
-

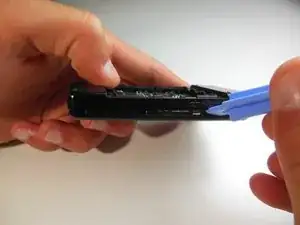

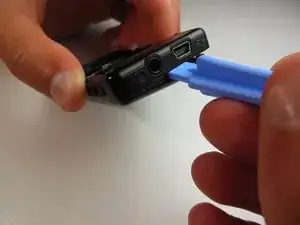

Carefully wedge the plastic opening tool into either long side of the device.
-
Slowly move the plastic opening tool along the side of the device, separating the front and back case covers.
-
Repeat these steps on the other side of the device.
-
-
-

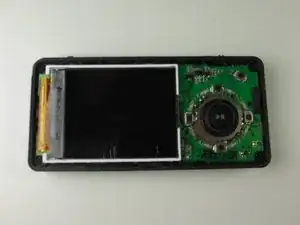

Once the front cover is loose, use your fingers to remove the front case cover for a new installation.
-
-
-

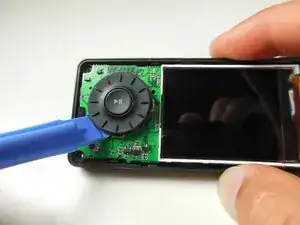

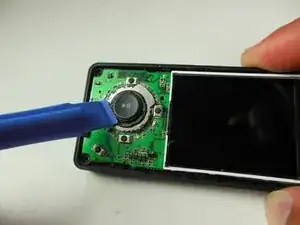

Insert the plastic opening tool underneath any side of the scroll wheel.
-

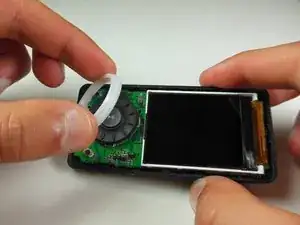

Slowly lift up on the plastic opening tool and the scroll wheel will come off.
-
To reassemble your device, follow these instructions in reverse order.
