Inspiron 17 5758 Hard Drive Replacement

Geschrieben von: Joseph Sctbunio
  • Kommentare: 2
Inspiron 17 5758 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

This guide teaches you how to replace the hard drive in an Inspiron 17-5758.

  1. kbj5LijUX64JrGrE

    • Flip the laptop over, battery facing you. Move the latch to the right, and grab the battery as it comes up.

  2. 6ussRUXTuhEdDEji

    • Remove the two Philips screws securing the hard drive cover.

    • Use a spudger in the provided hole to pry the cover upwards.

  3. 2QYcB6oXltCGvc4D

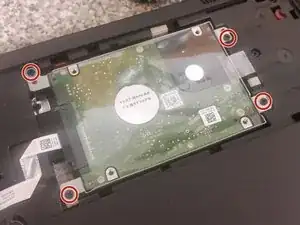

    • Remove the four Philips screws securing the hard drive caddy.

    • Remove the four screws from the hard drive caddy, and take the SATA connector off. You're done!

    Please include instructions on the Interposer Connector and cable…how to unplug and how to reattach before closing the back of the computer. The computer won’t recognize the hard drive unless this is reattached, and it is very flimsy.

    Thank you.

    James Bort -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Joseph Sctbunio

Mitglied seit: 24/09/17

7030 Reputation

Ein Kommentar

I found it very straightforward to purchase a Kingston KC600 SSD drive, which includes an external caddy, then use the free Aomei cloning software to clone the existing drive, then follow this article to open up the Inspiron, remove the SATA drive and install the KC600 drive instead. Thanks! It had become unbearable slow running Windows 10 but now has another lease of life.

Imogen -
