Inspiron 7359 2-in-1 Battery Replacement

Geschrieben von: Alfredo Acosta
  • Kommentare: 0
Inspiron 7359 2-in-1 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

6 Minuten

Einleitung

Once you have the back dissembled, feel free to follow this guide to see how you can replace the battery.

  1. l4Co2EBYK6xKAgfX

    • Turn off device before starting.

    • Turn the laptop upside down with the logo facing the surface of the table.

  2. VEbGwPaxwaaBdhbk
    VEbGwPaxwaaBdhbk
    5EGXbk2EIOB3GQcb

    • Use a Phillips #0 screwdriver to remove the ten 8mm screws from the back case of the laptop.

  3. BUUdOGCwagFSTpVN

    • Use a spudger to separate the back cover from the laptop.

    • Start from one corner and work your way around the edge of the cover.

    • Be careful not to bend or crack the back cover.

  4. 6Rj2NW21VPs6qIX3

    • All hardware components should be exposed.

  5. gVUkxuwNHUycriQQ

    • Unscrew two 8mm screws with a Phillips #0 screwdriver.

    • Unscrew one silver, wide-head, 8mm screw with a Phillips #0 screwdriver.

    • Disconnect the battery cable from the motherboard.

    • Make sure to keep all screws together and label where you unscrewed them from.

  6. dfDbntq2QZOLvjRQ

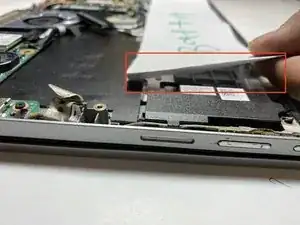

    • To remove the old battery, lift from the bottom and pull the battery towards you.

Abschluss

To reassemble your device, follow these instructions in reverse order using a new battery.
