Inspiron 7359 2-in-1 Screen Replacement

Geschrieben von: Dominique
  • Kommentare: 0
Inspiron 7359 2-in-1 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

This guide will help you replace the touchscreen LCD. Be extermly careful while replacing the touchscreen LCD.

  1. l4Co2EBYK6xKAgfX

    • Turn off device before starting.

    • Turn the laptop upside down with the logo facing the surface of the table.

  2. VEbGwPaxwaaBdhbk
    VEbGwPaxwaaBdhbk
    5EGXbk2EIOB3GQcb

    • Use a Phillips #0 screwdriver to remove the ten 8mm screws from the back case of the laptop.

  3. BUUdOGCwagFSTpVN

    • Use a spudger to separate the back cover from the laptop.

    • Start from one corner and work your way around the edge of the cover.

    • Be careful not to bend or crack the back cover.

  4. 6Rj2NW21VPs6qIX3

    • All hardware components should be exposed.

  5. n6gXrJHJj1fsX2Bx

    • Using a spudger or opening pick, carefully pry in between the screen and the screen backing.

    • After opening the LCD Screen, slowly and carefully open the laptop so the front of the screen touches the keyboard.

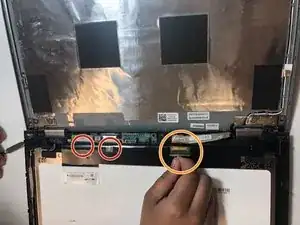

  6. 52UADM6MVIVhekMf

    • Slowly peel back the tape that is attached to the screen itself.

    • Once the tape is removed, gently disconnect the attached cables.

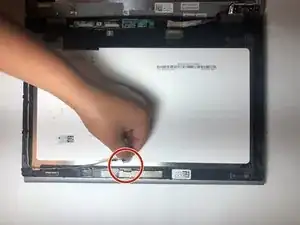

  7. Z3DoUlkEvdOpvdjJ

    • Carefully disconnect the attached cable.

    • Once you remove the attached cable, gently lift up the LCD panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
