Einleitung

  1. l4Co2EBYK6xKAgfX
    • Turn off device before starting.

    • Turn the laptop upside down with the logo facing the surface of the table.

  2. VEbGwPaxwaaBdhbk
    VEbGwPaxwaaBdhbk
    5EGXbk2EIOB3GQcb

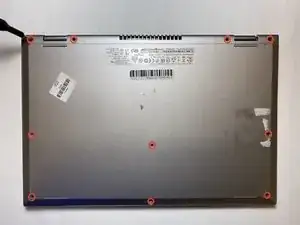

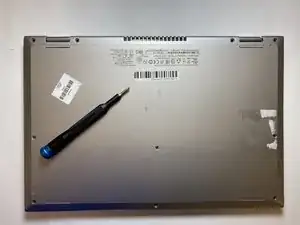

    • Use a Phillips #0 screwdriver to remove the ten 8mm screws from the back case of the laptop.

  3. BUUdOGCwagFSTpVN

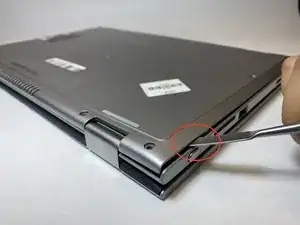

    • Use a spudger to separate the back cover from the laptop.

    • Start from one corner and work your way around the edge of the cover.

    • Be careful not to bend or crack the back cover.

  4. 6Rj2NW21VPs6qIX3

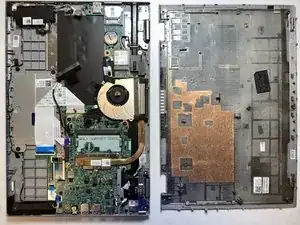

    • All hardware components should be exposed.

  5. fHJNU3iMRDA5vUa6
    fHJNU3iMRDA5vUa6
    UGqfZ42Pa3a2IjDe

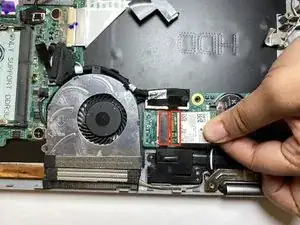

    • Use the spudger tool to remove the two antenna cables.

    • Remove the black screw.

    • Slightly pull up the end and remove the WiFi card. Be careful not to damage the internal adapter.

Abschluss

To reassemble your device, follow these instructions in reverse order.
