Schwierigkeitsgrad
Very easy
Schritte
3
Zeitaufwand
5 Sekunden - 10 Minuten

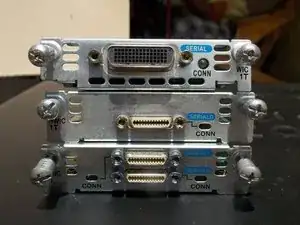

In the document you can see the compatible modules with the equipment.
In order to install or remove a card the equipment should be turned off.

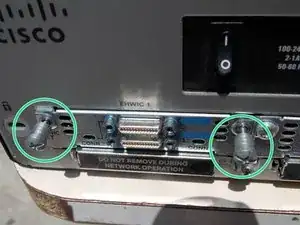

Loosen the cards' screws.
Do not remove them completely. Once they are loose the spring will push the screw outwards.

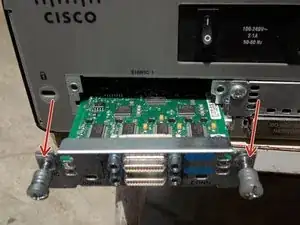

To remove, pull on the card.

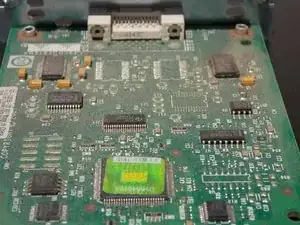

It is recommended that you clean the card of dust.

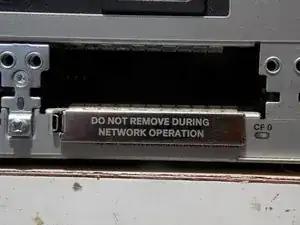

Insert the card or install the protective router cover to avoid dust accumulation.
To re-assemble your device, follow these instructions in reverse.
