Install Porsche Cayenne LED Switchback Side Marker Lights

Geschrieben von: Eric Wu
  • Kommentare: 2
Install Porsche Cayenne LED Switchback Side Marker Lights

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

1 Stunde

Einleitung

This LED Switchback side markers is a direct replacement for your OEM side markers to make your Porsche Cayenne be unique.

  1. 3NoBtWclIRRGyFwg

    • Turn the wheel inside

    • Remove the clips in the wheelbase to access the back of the side marker.

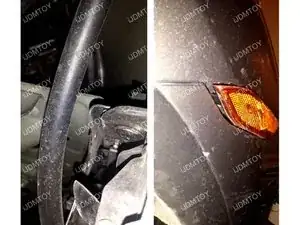

  2. LSPNljadQlrJCodN

    • Remove the screw securing the stock amber side marker.

    • Remove amber side marker.

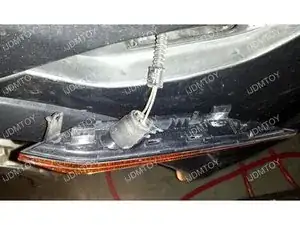

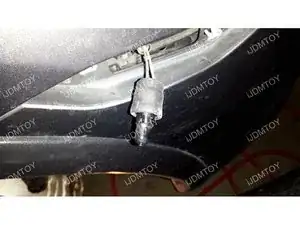

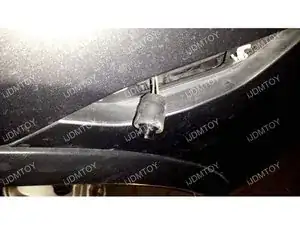

  3. OY2Xy2ZUUt5ThaS5
    OY2Xy2ZUUt5ThaS5
    JJuPxiV51IPtKvXK
    M2DnKpDqAUmdbBhg

    • Unplug stock side marker.

    • Remove stock bulb.

    • Replace with new LED side marker.

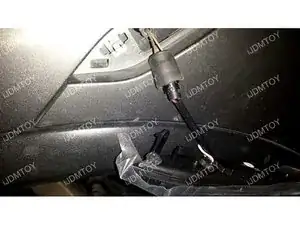

  4. eXKX6UbcHxNXlpBC

    • Connect additional white wire to the ACC or Existing LED Daytime Running Lamp Positive

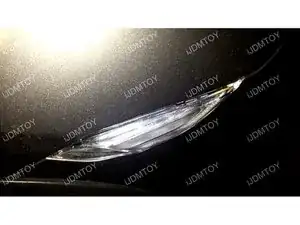

  5. anC1nXphlBDSTTrO

    • Test everything to check if everything works correctly.

    • Put all components back the same way it was removed.

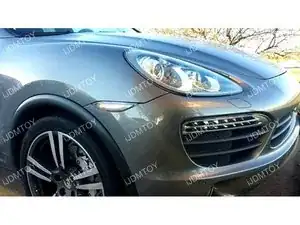

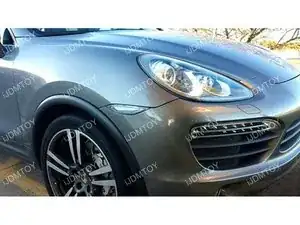

  6. bEjkWCDPImPjQeIh
    bEjkWCDPImPjQeIh
    ZJBIUNMNAs3V6BQD

    • Enjoy the new Porsche Cayenne LED side marker lights.

Abschluss

You can see that the installation process is very straightforward. Your Porsche Cayenne is now extremely unique on the road with these switchback LED side marker lights!

Tinte & Feder

Eric Wu

Mitglied seit: 22/01/15

3267 Reputation

2 Kommentare

can you tell us where you connected the white wire? it doesn’t show in the images. did you just tap the DRL wire nearby or run it to the fuse box?

Dan Vaz-Pocas -

There si an easier way to remove the lights - take apiece of fishing line and wrap it over the front and behind the light. Pull it towards the door and it will release the front catch and the light pops right out

Tom Turner -
