Einleitung

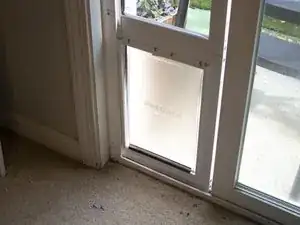

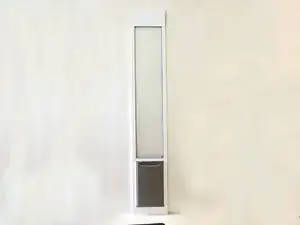

The Petsafe Dog Panel is a removable dog door that can be installed into the frame of your sliding glass door. Before continuing to the guide, make sure the Petsafe Dog Panel contains all the provided materials and that it is not damaged in any way. Please make sure to pay attention to the warnings before screwing into the panel or your door frame through out the installation process.

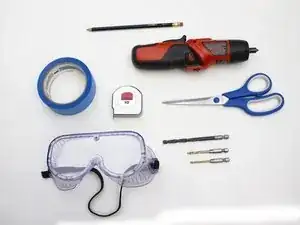

Werkzeuge
-
-

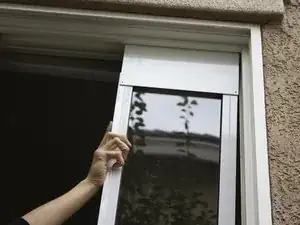

Slide the top of your dog panel into the top track of the sliding glass door.
-

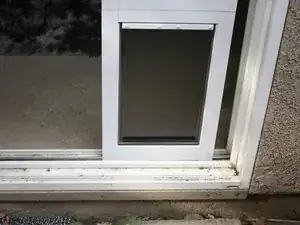

Place the bottom portion of the dog panel into the bottom track of the sliding glass door.
-
-
-

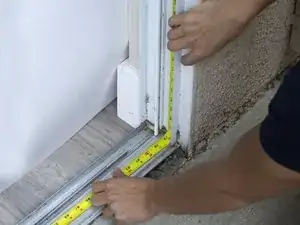

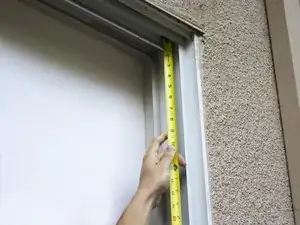

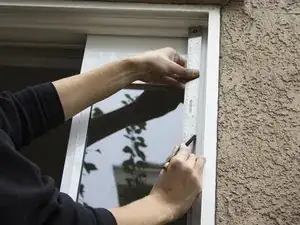

Measure 12” from the top, down the side of your sliding glass door frame and mark it.
-

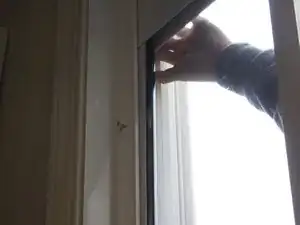

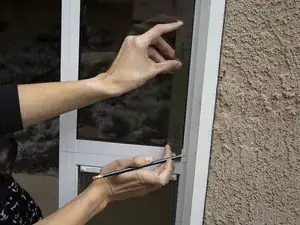

Mark 1” above the pet flap onto the edge of your sliding glass door.
-
-
-

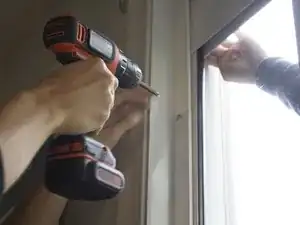

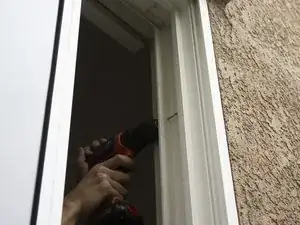

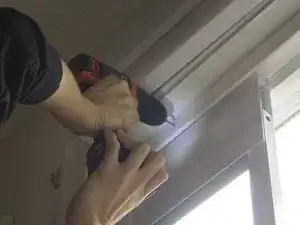

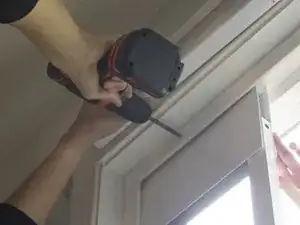

With a 9/64ths drill bit, drill clearance holes into the marks made on the sliding glass door frame
-
-
-

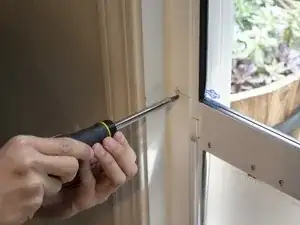

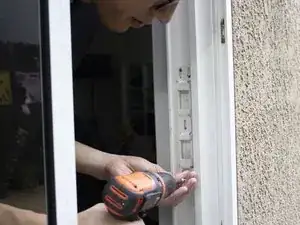

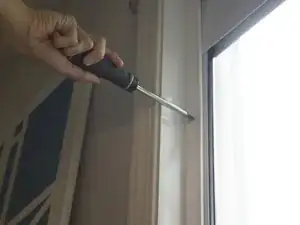

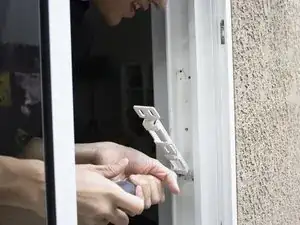

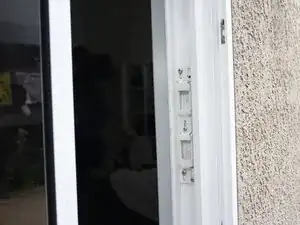

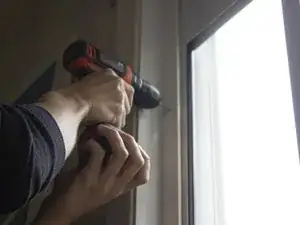

Fasten the panel to the interior side of the sliding glass frame with the provided ⅝” screws.
-
-
-

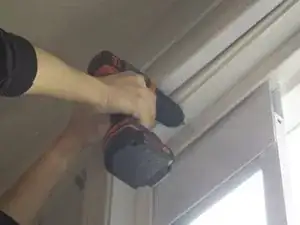

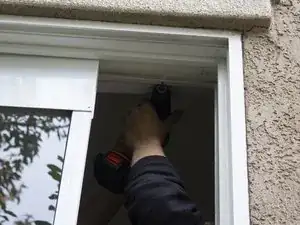

Repeat steps 8 and 9 to secure the dog panel into place. Follow these steps when drilling into the clearance hole marked at the top of the frame.
-
To reassemble your device, follow these instructions in reverse order.
