Instant Pot IP-DUO80 V2 LED Display Replacement

Geschrieben von: Kayla Meacham
  • Kommentare: 5
Instant Pot IP-DUO80 V2 LED Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

The LED display is how you communicate with your Instant Pot. This guide will show you how to remove the display from the front of your device.

  1. 2iY3aY2A1XBSRtHF
    2iY3aY2A1XBSRtHF
    5yBILGHBic3wgGfA
    GyTmOnHJdya2ZwAZ

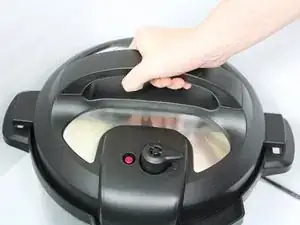

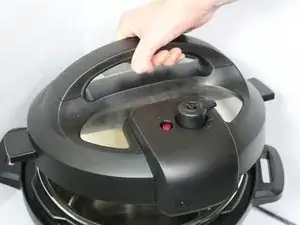

    • Open the lid by turning it counter-clockwise and lifting up.

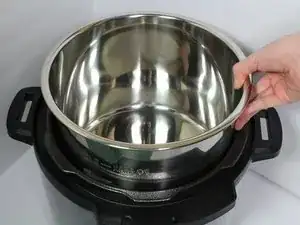

    • Remove the inner pot.

  2. FTy1t56wl2VgiVO1
    FTy1t56wl2VgiVO1
    jJ4IYEpw6oIApDvM
    cGUjsbItKK41rMFk

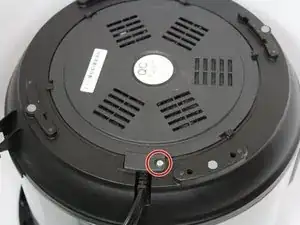

    • Turn the Instant Pot upside down.

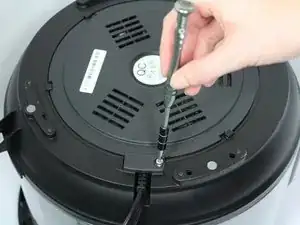

    • Remove the single 12-mm screw by using the T-15 head screwdriver and turning it counter-clockwise.

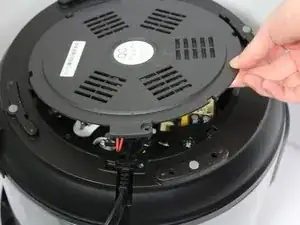

    • Turn the plate counter-clockwise and lift it off the Instant Pot.

  3. 3KAwoxc12RoCtcXV
    3KAwoxc12RoCtcXV
    q3uoQJSNuNq3mVju

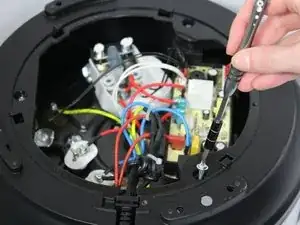

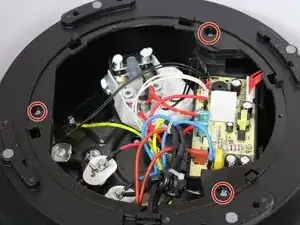

    • Remove the three 19-mm screws in the black plastic base's edge using the PH-1 head screwdriver and twisting counter-clockwise.

  4. SxVhq4RyoogHBfRm
    SxVhq4RyoogHBfRm
    Ofjr64NaA5vqVJMy

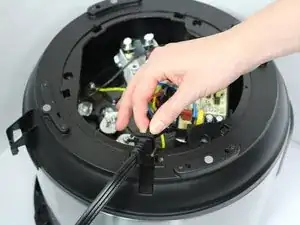

    • Pull the power cord out of its slot.

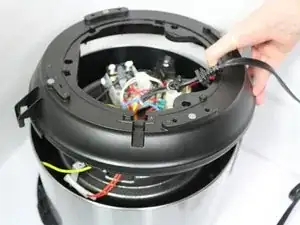

    • Pull up on the edge of the black plastic base to remove the base.

    Tengo una olla Instant por necesito repararla está con golpe

    sonialrodriguezv -

  5. YvXGUfISlywBaXng
    YvXGUfISlywBaXng
    bUnNKRWRQwEGhG5v
    ZKgBEANYamOR3PXp

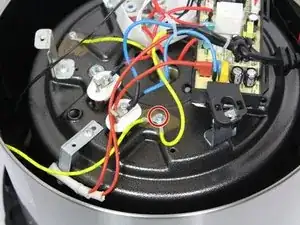

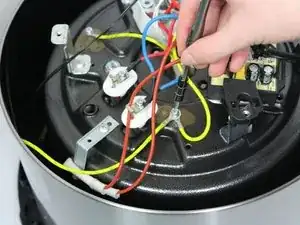

    • Disconnect the two green-striped yellow wires that are connected onto the bottom of the heating element. Use a PH-1 head screwdriver and turn counter-clockwise to remove the 10-mm screw holding them in place.

    • Be careful not to lose the small washer that comes with this screw.

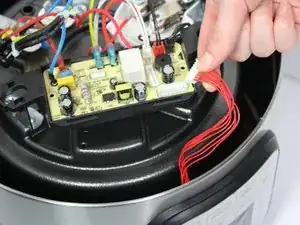

    • Pull up on the cn101 connection to detach the LED display from the motherboard.

  6. I1KRjbh5ZG1LNFUi

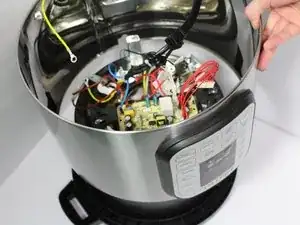

    • Lift the silver outer shell off of the top black ring.

  7. LuWAvHmoAVUB4oXT
    LuWAvHmoAVUB4oXT
    QQeHr3Zvd6hd1DnW
    roFTwKjDZdRISnLh

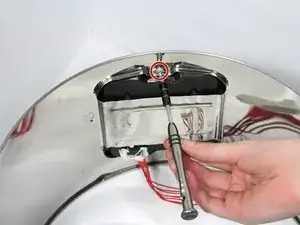

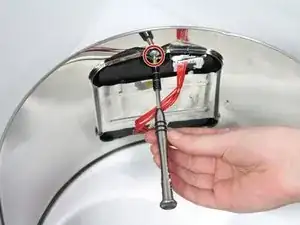

    • Remove the two 10-mm screws connecting the LED display to the outer shell using a PH-1 head screwdriver and twisting counter clockwise.

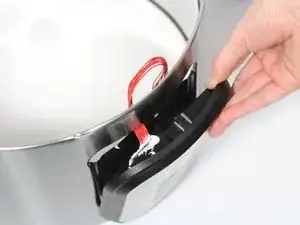

    • Pull out the LED display by pulling on it gently.

    You say no parts? But I don’t see how you rectified the issue just by removing the LED display. Do you need a replacement LED display?

    bryonkarren -

    Okay..took instant pot apart as shown..do I need to buy a new led display..if so, where? Or do I just reinstall the old one?

    g locke -

Abschluss

To reassemble your device, follow these instructions in reverse order.
