If you need to fix the play on a bike's rocking bars or replace the integrated headset on your bicycle, follow this guide. The process requires some disassembly but in the end you will have the correct adjustment on your headset. Alternatively, you may want to replace the headset entirely and make adjustments as necessary.
Ersatzteile
-
-

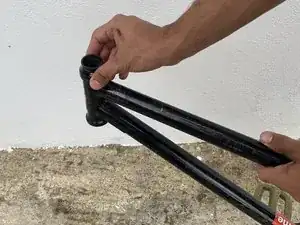

Remove the dust cap on top and replace the old bearings with the new headset if necessary.
-

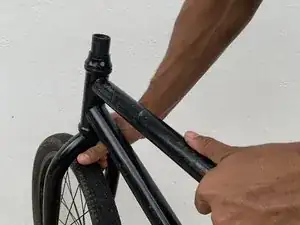

Apply a thin coat of grease as needed on the frame’s head tube or steering head and fork.
-
-
-

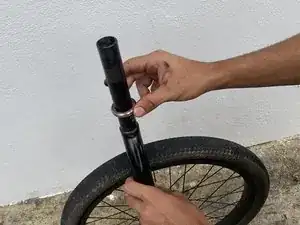

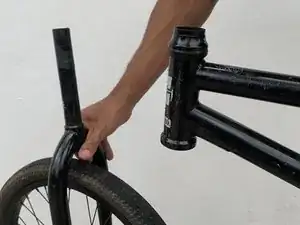

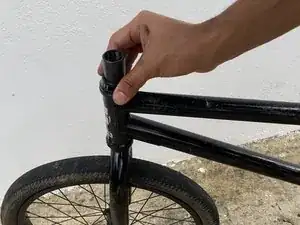

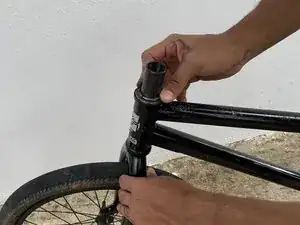

Slide the fork back on the frame and place the compression ring on the upper headset bearing.
-
-
-

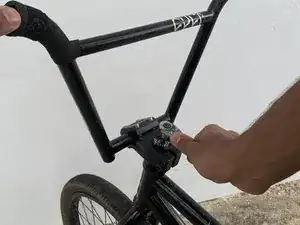

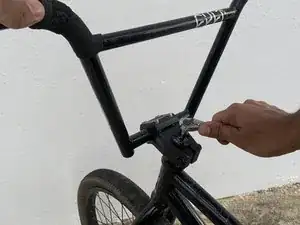

Reinstall the compression bolt and tighten it down, while at the same time keeping the bars in alignment.
-
Tighten the compression bolt until the thread becomes hard.
-

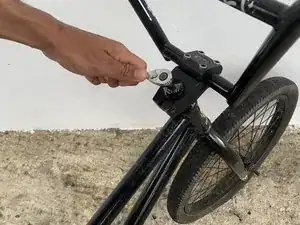

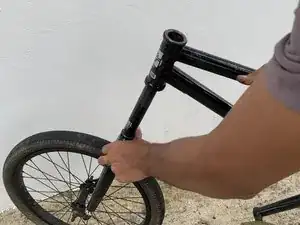

Use the socket wrench to turn the bolt half turn more and check for play by rocking the bars forward and backwards while pinching the frame with your knees.
-
-
-

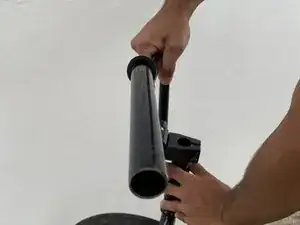

Check for play and make sure the bars turn smoothly.
-

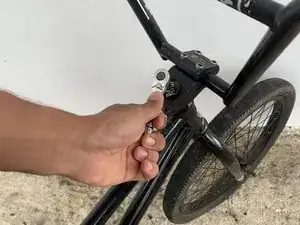

Secure the pinching bolts on each side of the stem, alternating between each side as you go.
-
The final product should end up with aligned and firm bars. There should be no forward or backwards play and everything should turn smoothly.
