Ion Air Pro Record and Stop Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

If your record/stop switch is not working follow this guide to replace it.

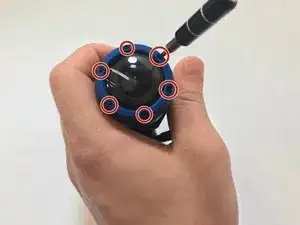

  1. 4ZL4QxjcpTvXOfC1

    • Remove the six screws (3 mm) that secure the lens cover bezel with a #00 Phillips screwdriver.

  2. JWFVuISdC2M4VEwa
    JWFVuISdC2M4VEwa

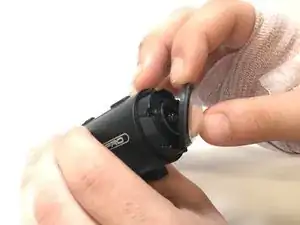

    H5xkmEQGQfY2tG1h

    • Remove the blue securing the lens cover. Then simply pull off the lens cover itself.

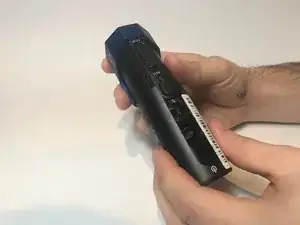

  3. w6oMUiviV4nItSSX

    • Remove black aluminum casing as shown.

  4. P2oDsgA1OOArIwQp

    • Using a #00 Phillips screwdriver, unscrew the screw securing the record/stop switch.

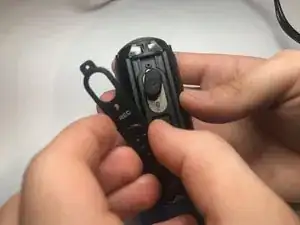

  5. KKwicwjFouTAX23S

    • Remove the record/stop switch. You are then able to replace the switch.

    • Be careful to not misplace the power button and spring that will no longer be secured when the switch is removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
