This guide is about how to fix the jerking bump.
No parts need to be replaced.
Werkzeuge
Ersatzteile
-
-

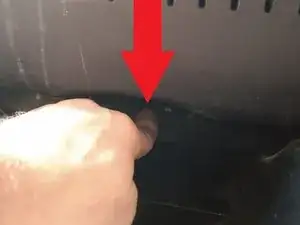

Fold backrest forward by pressing the release tab in and under the chair (Arrowed) and push the backrest forward.
-

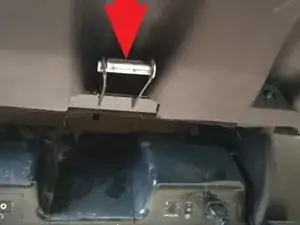

On the two last pictures you can see the release lock and tap after the backrest is folded forward
-
-
-

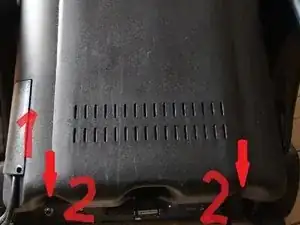

Remove the screw for the cord inlet (Marked as 1) and remove the cord cover
-

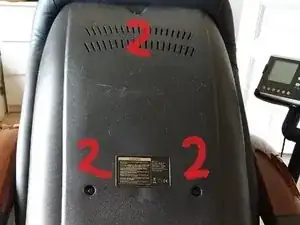

Remove the 5 screws (marked 2) for the back cover - Please note they are NOT all the same size, so pay attention to the positions
-
-
-

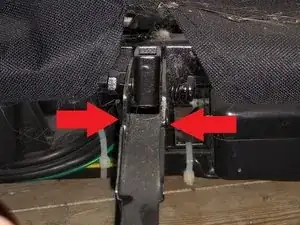

With the cord cover (#1 in previous step) removed, remove the two connectors
-
The connectors on my model was protected with plastic strips to prevent me from releasing the lock tap - didn't work - I took the picture AFTER I had removed the cover so it was easier to see what the connectors looked like
-
Remove the strips or pull them towards the wires (Upwards) and use a flathead screwdriver to prise the lock open and remove the connector
-
Remove the back cover
-
-
-
In my case I looked at the mechanism and saw no immediate failures
-
I then noticed that a black strap (Arrowed) was showing signs of being curled/crumbled
-

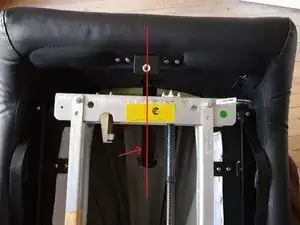

Further examination shows that the strap, which goes from top to bottom, was not aligned 100 % centered between the massage wheels (I try to show that with the red line) and the strap had become a little loose
-
The result was the that the right wheel was sort of "picking up" the strap, so both wheels was on the same side of the strap
-
At some point the right massage wheel had to cross back again over the strap hereby crumbling it and giving this jerky bump.
-
-
-
The fix is to tighten the strap - there are two ways
-
1 - Remove the frame with wheels and rollers and re-align + tighten the strap
-
2 - Tighten and partly re-align the strap
-
I opted for solution 2
-
I tightened the strap at the botton of the frame, because this is where I had space to manouvre
-

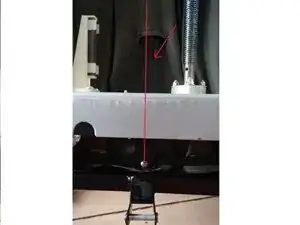

I positioned the strap more to the left so it got centered
-
I used a 1.5 mm drill to prepare a whole in the frame so the plate screw (See picture 2) does not rapture the woodden frame
-

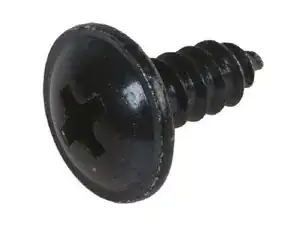

I used a plate screw to secure the strap in the new position
-
To reassemble your device, re-connect the cable connectors
Then place the back cover again, making sure it fits without pinching something
Finally place the cable/cord cover
