Ivation IVWPDC20Y Buttons Replacement

Geschrieben von: Alex
  • Kommentare: 0
Ivation IVWPDC20Y Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

20 Minuten

Einleitung

This guide will show how to replace the buttons on the top of the camera.

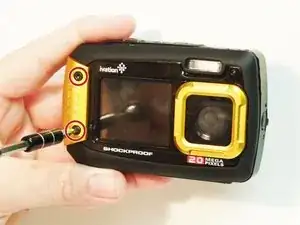

  1. OFZ4jgpfmRZTaiiX

    • With the H2.0 bit screwdriver, remove the two screws on the yellow waterproof cover

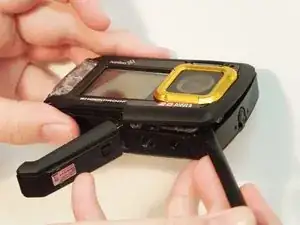

  2. NgFnFTensGm6qFvW

    • Apply a plastic opening tool to each of the corners and gently remove the casing

    • The front casing is held down by adhesive and may require additional work to remove

    • Apply just enough force to undo the inner latches to make sure not to damage the waterproof seal

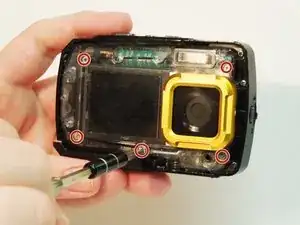

  3. qKULBspi1GxJekwi

    • Remove the five silver screws from the inner casing using the PH00 screwdriver bit

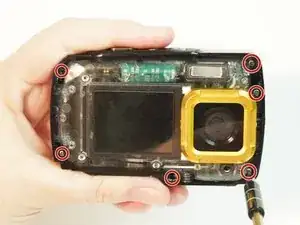

  4. hXeGaADGksV5QK5I

    • Remove the six screws from the edge of the clear inner casing with the PH00 screwdriver bit

    • These screws are very small and easy to strip so apply consistent pressure when removing them

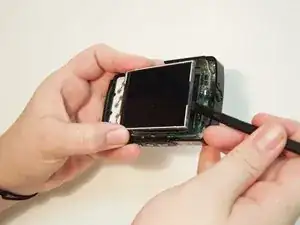

  5. X5ZRlpOF1aSK1FVX

    • Pry off back outer casing using the black spudger or the blue prying tools

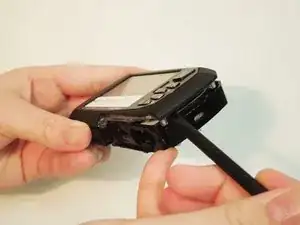

  6. NpvxfgMIYZamHHfD

    • Remove the five silver screws from the inner casing using the PH00 screwdriver bit

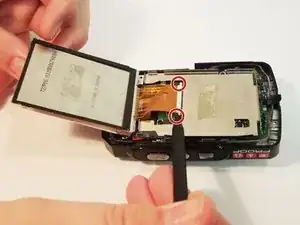

  7. AotAVSPaW1DXGCkL

    • Carefully remove the screen from the silver casing using a prying tool or the black spudger

    • There is adhesive in the center of the screen, be sure not to bend it when applying pressure

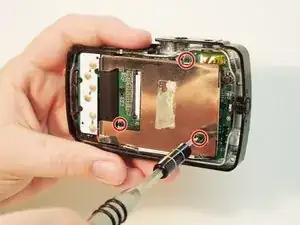

  8. 4bAdemQFZ4qPXY5j

    • Remove three screws holding the silver screen casing to the motherboard using the PH00 bit screwdriver

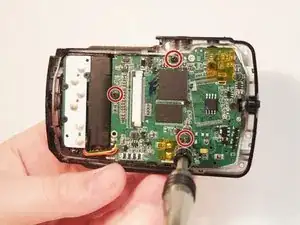

  9. en2FY4ZJYyhSZ4oR

    • Remove three screws holding the motherboard into the casing using the PH00 bit screwdriver bit

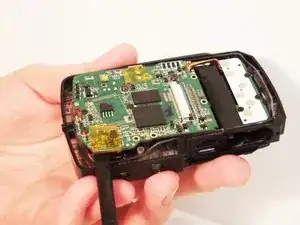

  10. VMESxRwWvHYQxuCX

    • Gently lift the corner of the motherboard out

    • Everything should come out as one component free of the casing

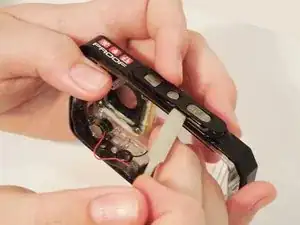

  11. 1PJZv4KGVIGFsxSv

    • Use the metal prying tool to lift off the cover of the buttons

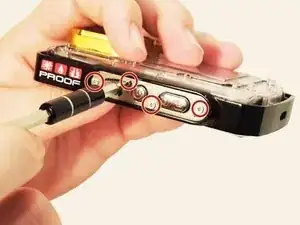

  12. QiN5OkBPKgsbb11m

    • Use the PH00 bit to remove the four screws on the metal plate around the buttons

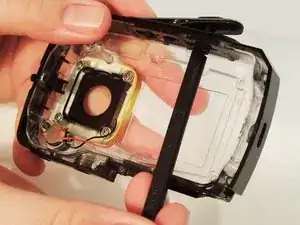

  13. n3gZJMuIoSAcRPEk

    • Finally, use the plastic spudger to push buttons out, and then replace them

Abschluss

To reassemble your device, follow these instructions in reverse order.
