Ivation IVWPDC20Y Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 Minuten

Einleitung

Use this guide to replace the main rear-facing screen of the Ivation IVWPDC20Y camera.

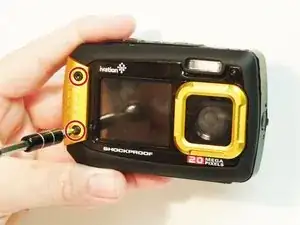

  1. wVLYBJHGmKeGFfCb

    • With the H2.0 bit screwdriver, remove the two screws on the yellow waterproof cover

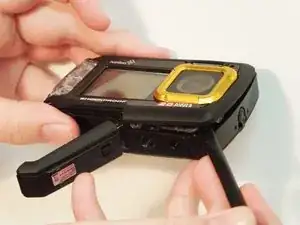

  2. BFBTqT1aeXADHN1o

    • Apply a plastic opening tool to each of the corners and gently remove the casing

    • The front casing is held down by adhesive and may require additional work to remove

    • Apply just enough force to undo the inner latches to make sure not to damage the waterproof seal

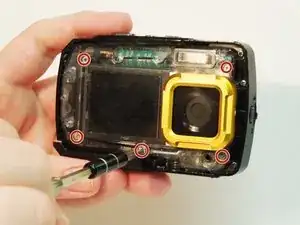

  3. WCONRx3pvsbPTxCS

    • Remove the five silver screws from the inner casing using the PH00 screwdriver bit.

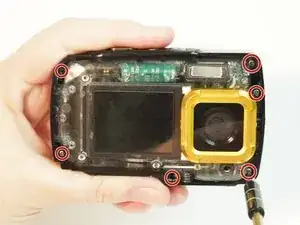

  4. kxZFWFFiP6dBfkNA

    • Remove the six screws from the edge of the clear inner casing with the PH00 screwdriver bit.

    • These screws are very small and easy to strip so apply consistent pressure when removing them

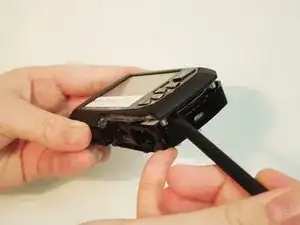

  5. XfpUOOguKw4nvJwR

    • Pry off back outer casing using the black spudger or the blue prying tools.

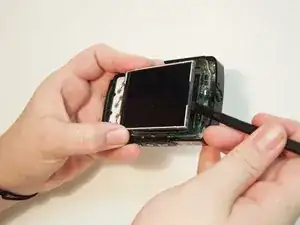

  6. xUHbCBTr4pKqyKLI

    • Carefully remove the screen from the silver casing using a prying tool or the black spudger.

    • There is adhesive in the center of the screen, be sure not to bend it when applying pressure.

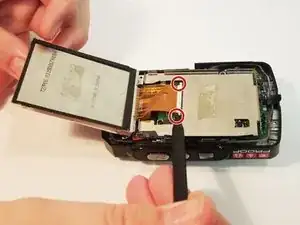

  7. RTr6dqe3gjXff4gO

    • Using the poker end of the spudger push gently on the black pegs holding the orange tape in place.

    • Screen and orange tape should slip out as a whole.

Abschluss

To reassemble your device, follow these instructions in reverse order.
