Ivation IVWPDC20Y Flash Bulb Replacement

Geschrieben von: Wendy Jones
  • Kommentare: 0
Ivation IVWPDC20Y Flash Bulb Replacement

Schwierigkeitsgrad

Difficult

Schritte

11

Zeitaufwand

30 Minuten

Einleitung

Use this guide to replace the bulb on the flash if it is burnt out.

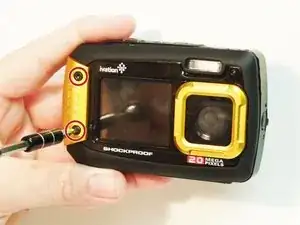

  1. 4YWLtYrRdJOc1RXS

    • With the H2.0 bit screwdriver, remove the two screws on the yellow waterproof cover

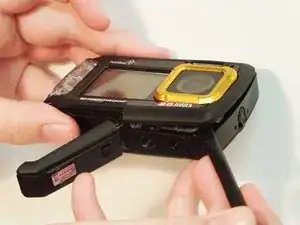

  2. apZoMtIbgv1gdHuQ

    • Apply a plastic opening tool to each of the corners and gently remove the casing

    • The front casing is held down by adhesive and may require additional work to remove

    • Apply just enough force to undo the inner latches to make sure not to damage the waterproof seal

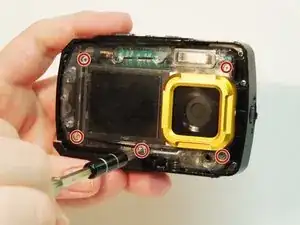

  3. Ew3CZ1KTaufZB4Wk

    • Remove the five silver screws from the inner casing using the PH00 screwdriver bit

  4. UfXECVEZRItSBXir

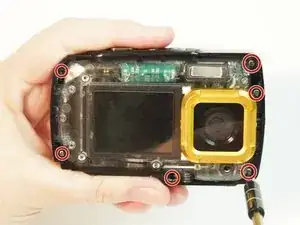

    • Remove the six screws from the edge of the clear inner casing with the PH00 screwdriver bit

    • These screws are very small and easy to strip so apply consistent pressure when removing them

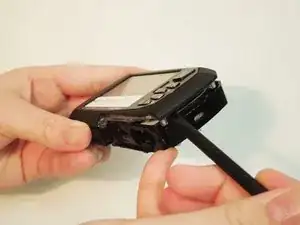

  5. 22qFFtSTYs3Gvotn

    • Pry off back outer casing using the black spudger or the blue prying tools

  6. VgwKpq2qI1W1u6Uv

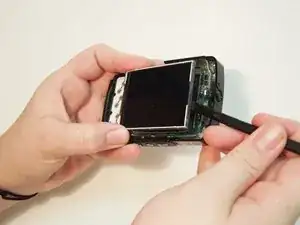

    • Carefully remove the screen from the silver casing using a prying tool or the black spudger

    • There is adhesive in the center of the screen, be sure not to bend it when applying pressure

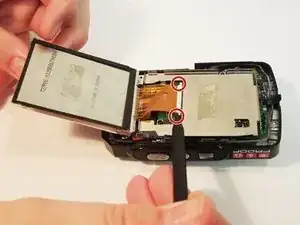

  7. DrA3nhRl2OJAB1T3

    • Gently push out the pins holding the orange tape down using the pointy end of the spudger

    • Screen and orange tape should slip out as a whole

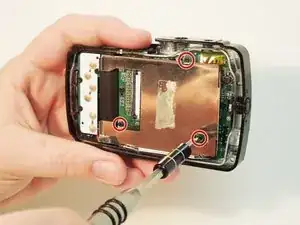

  8. 22xQtqUHSFY4VEVf

    • Remove three screws holding the silver screen casing to the motherboard using the PH00 bit screwdriver

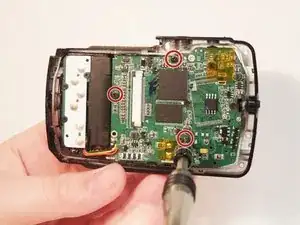

  9. tURY2veniEYvWCUh

    • Remove three screws holding the motherboard into the casing using the PH00 bit screwdriver bit

  10. AeklKUTi3XdDPFLK

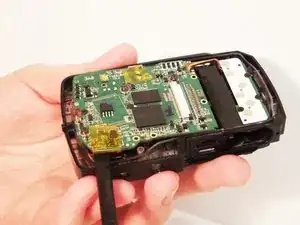

    • Gently lift the corner of the motherboard out

    • Everything should come out as one component free of the casing

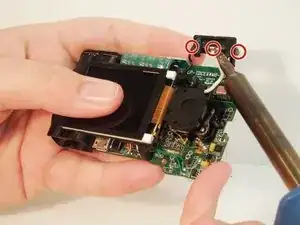

  11. iLNpxnVLlc2bldQk

    • Remove the soldering on the three wires holding the flash bulb

    • The wires are different colors: red, white, and black

Abschluss

To reassemble your device, follow these instructions in reverse order.
