Ivation IVWPDC20Y Lens Assembly Replacement

Geschrieben von: Jack Schlandt
  • Kommentare: 0
Ivation IVWPDC20Y Lens Assembly Replacement

Schwierigkeitsgrad

Difficult

Schritte

12

Zeitaufwand

30 Minuten

Einleitung

This guide will show you how to replace a faulty lens unit for this camera.

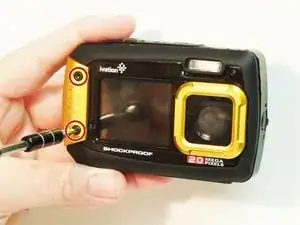

  1. w1rRRYhaMWyvtiYj

    • With the H2.0 bit screwdriver, remove the two screws on the yellow waterproof cover

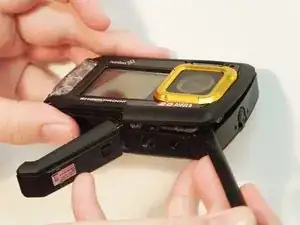

  2. VVBGMwCYkkAjHYAs

    • Apply a plastic opening tool to each of the corners and gently remove the casing

    • The front casing is held down by adhesive and may require additional work to remove

    • Apply just enough force to undo the inner latches to make sure not to damage the waterproof seal

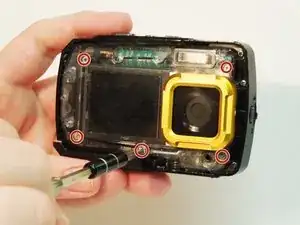

  3. g4NdeZ2GWyayZt3l

    • Remove the five silver screws from the inner casing using the PH00 screwdriver bit

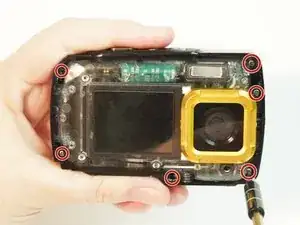

  4. 6jvLuHL5hTmrIOmv

    • Remove the six screws from the edge of the clear inner casing with the PH00 screwdriver bit

    • These screws are very small and easy to strip so apply consistent pressure when removing them

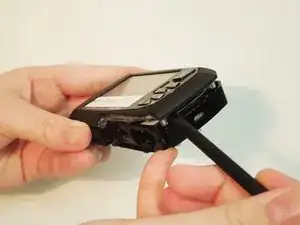

  5. cOyPekGCANTqKwar

    • Pry off back outer casing using the black spudger or the blue prying tools

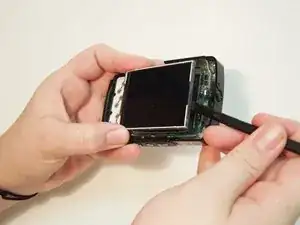

  6. WYrPDv4QEiDyCyf3

    • Carefully remove the screen from the silver casing using a prying tool or the black spudger

    • There is adhesive in the center of the screen, be sure not to bend it when applying pressure

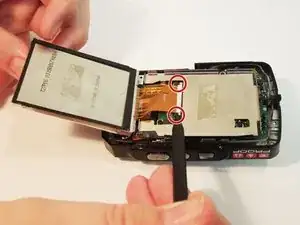

  7. XrLWKHFayowNlKfV

    • Using the poker end of the spudger push gently on the black pegs holding the orange tape in place

    • Screen and orange tape should slip out as a whole

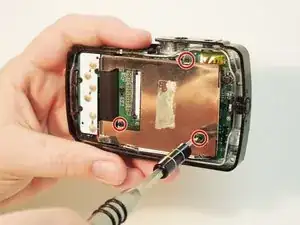

  8. fIRJyAbUB5j3cmJy

    • Remove three screws holding the silver screen casing to the motherboard using the PH00 bit screwdriver

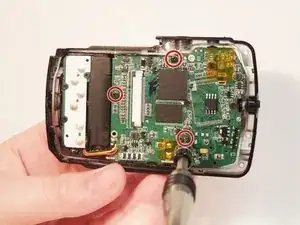

  9. HV4WrQ5ki5qhiDw6

    • Remove three screws holding the motherboard into the casing using the PH00 bit screwdriver

  10. 1MsWZLcusCEYrdCZ

    • Gently lift the corner of the motherboard out

    • Everything should come out as one component free of the casing

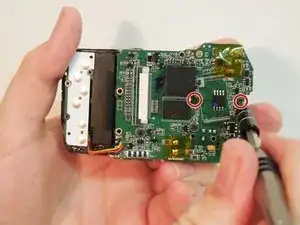

  11. QtFsh6II5imQrj1N

    • Remove the two screws holding the lens assembly to the motherboard using the PH00 bit screwdriver

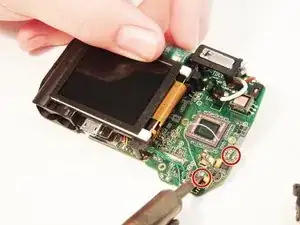

  12. wSpQBmtbRxOxnsnG

    • Remove the soldering on the 3 wires that are connected to the lens unit

Abschluss

To reassemble your device, follow these instructions in reverse order.
