JBL Charge 2 Plus Akku austauschen

Geschrieben von: John Reynolds
  • Kommentare: 60
JBL Charge 2 Plus Akku austauschen

Schwierigkeitsgrad

Mittel

Schritte

8

Zeitaufwand

15 - 20 Minuten

Einleitung

Hier wird der Austausch des Akkus gezeigt.

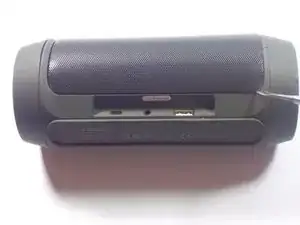

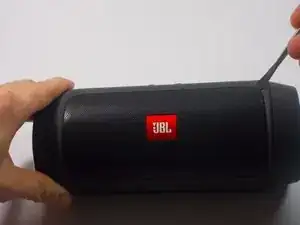

  1. 3KpZyLZvWxGwjg6D
    3KpZyLZvWxGwjg6D
    qfMAKpuBBUkOSchQ

    • Beginne mit dem Spudger in der linken unteren Ecke den Grill von jeder der vier Ecken hoch zu heben.

    • Folge den Anweisungen von eben, um den rückseitigen Grill zu entfernen.

    Test because my last comment disappeared.

    Debra Bainum -

    You might ONLY need to remove the back grille. Read the comments on the next step.

    nus.czm -

    Agree with comments above. All I had to do was remove the back grille to get to the plastic battery cover similar to comment above.

    Tim Pipkorn -

    Danke, das hat mir weitergeholfen.

    Ganz herzlichen Dank

    Michael Pauw 04.08.2021

    Michael Pauw -

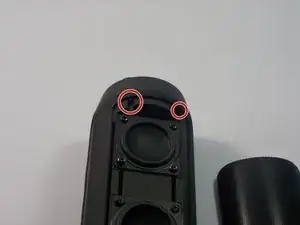

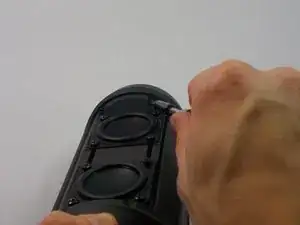

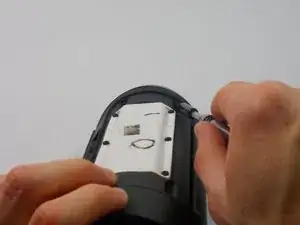

  2. LgHo2yGC2CLSBQmX
    LgHo2yGC2CLSBQmX
    p2ojaSGyI2UF4CET
    1r13KCWgSExWZelE

    • Löse die beiden 5 mm Schrauben, die den Subwoofer festhalten.

    • Wiederhole den letzten Schritt für die beiden Schrauben auf der Rückseite.

    no 5mm screws going into the radiator on my device

    Norman Ingham -

    I had the same issue. I managed to unplug the battery cable after removing the right front speaker

    Peter Karsten -

    I have the charge 2 + and only needed to take off the back grill. Then removed 6 smaller screws from a black rectangular cover, which turns out to be the battery cover! Then unplugged the battery and removed it. Many less steps than described in the steps here. Note I did NOT have to remove either round end.

    Debra Bainum -

    I did the same thing! Everybody should read your comment before attempting this whole process described below.

    You ONLY have to remove the back grille, and you will see the battery cover. Unscrew the small philips screws from the battery cover, then the whole battery cover can be removed.

    nus.czm -

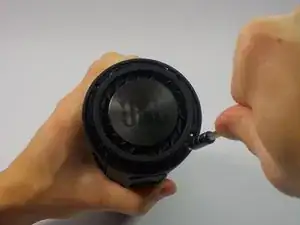

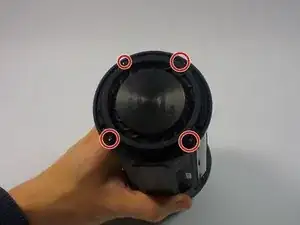

  3. OE3okcRcMD2rWbLR
    OE3okcRcMD2rWbLR
    ZCNm3WBvSEQnRFQF

    • Entferne die vier Schrauben, die den Passivstrahler festhalten.

    also there are no screws that hold the passive radiator in place.

    Norman Ingham -

  4. 5JOospTwApwDNCxp

    • Lasse den Passivstrahler abspringen.

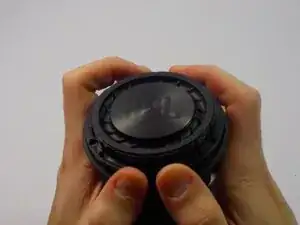

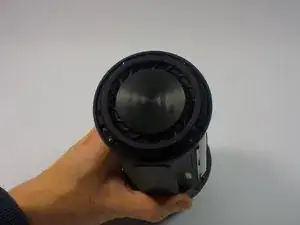

  5. LXeh2QPgwBBcW54R
    LXeh2QPgwBBcW54R
    MVOyNJMseYMRJuXm
    sERbyqJoXhSWuEaL

    • Wiederhole die Schritte 2,3 und 4 für den anderen Passivstrahler.

    No, you only have to disconnect the right passive radiator to get to the battery and plug it.

    Gabriel Dug -

    True. This step is unnecessary. You only need to pop the radiator under which the cables of the battery go.

    lukasz.kulbacki -

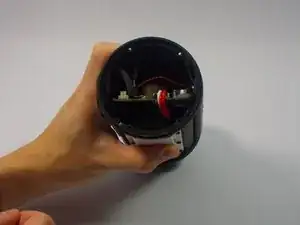

  6. wi6YNHNSIANCFmXA
    wi6YNHNSIANCFmXA
    ate53SnxdoF1XujS

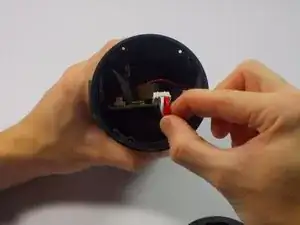

    • Entferne den Akkuanschluss, indem du seinen Stecker vorsichtig an der Seite in der Nähe der LCD Beleuchtung von der Hauptplatine abziehst.

    Den Stecker längsseits des Gerätes abziehen. Erst eine Seite vorsichtig etwas lösen, sodann die anders Seite.

    Gerald Fendl -

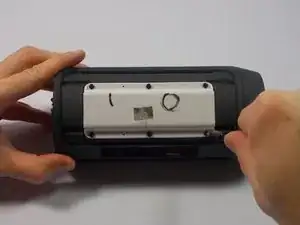

  7. q4YyX4xNBYXEKr2A

    • Entferne die sechs Schrauben, welche die weiße Abdeckung befestigen.

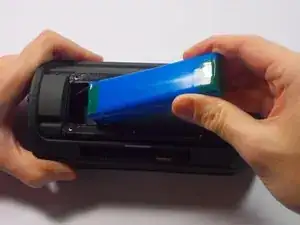

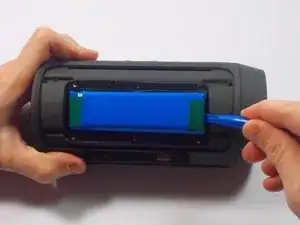

  8. MrN4LpQuaXiODPIC
    MrN4LpQuaXiODPIC
    jPDnOnZr1PiCvQVX

    • Entferne den Akku mit einem Plastiköffnungswerkzeug.

    Do you have any idea where to get this battery replacement from?

    jamsomaniac -

    You can purchase the JBL charge 2 "plus" battery on eBay. See my post below for details on modifications that are required.

    Craig D -

    Does the "Charge 2" use the same battery?

    Megaman420 -

    Skip steps 2,3,4,5,6 and half of 1! Just remove the back grill and cover, unplug battery and reinstall. You don’t need all those other steps to unplug the battery

    Ard Arvin -

    Thanks! You are right

    lemmetti.mikko -

    The power cable on the side of battery goes under, so how do you plug/unplug it without those steps?

    filipkupiec -

    MLP912995-2P Extended Battery for JBL Charge 2+, Charge, 6000mAh sold by WalMart.com for $26.99 delivered is the exact replacement for the 2+. I learned the hard way.

    Paul Espeseth -

    MLP912995-2P Extended Battery for JBL Charge 2+, Charge, 6000mAh sold by WalMart.com for $26.99 delivered is the exact replacement for the 2+. I learned the hard way.

    Paul Espeseth -

    These are instructions for the 2, not the 2+. Disassembly for the 2+ as well as the replacement battery are not the same in the 2+ as they are in the 2.

    Paul Espeseth -

    I confirm that this is not a 2+. At least not similar to mine. Please take extreme care because the battery cable polarity is inverted. In any case I recommend to disassemble before purchasing the replacement battery.

    _______ -

    I ordered a replacement battery from Germany and installed it, but had the polarity mixed up as well since the JST connector is crimped on the wrong way in the factory (apparently this happens more often if you read other people's experiences).

    But I didn't noticed it before and fired it up after installing the new battery. It was extremely stuttering so I quickly turned it off, took out the battery and soldered on the wires + connector from the old battery on to the new battery and now it works properly again

    Lars Huisman -

Abschluss

Um dein Gerät wieder zusammenzusetzen folge den Schritten in umgekehrter Reihenfolge.

Tinte & Feder

John Reynolds

Mitglied seit: 16/10/15

3030 Reputation

37 Kommentare

Great guide but where to source a battery for a JBL charge 2.

Mine failed, complained to Harman and they sent a new one and didn't want the old one so have a spare I'd like to get working.

Thanks in advance

Rob grist -

Had my speaker for a month. It won't charge. Why did it only last a month and I have to get a new one? I'm not satisfied with the speaker for the price that I paid.

Jeanette dagastine -

When I charge my jbl the light in tge power button turns on but when I press it the device does not respond. Please help me...

Tibetan Stoner -

Try disconnecting the battery and plugging it in again.

MarelyOscar -

I just had the same problem, the on/off led got stuck and couldn't get any sound or operation from any button. After different attempts a simultaneous pressing of the Phone together with the - and the + button brought my Charge2 to life again.

Javier G. Valdivia -

Hi Dave, the link to the battery you posted does not connect to the Charge 2 Plus. If you notice in the pictures, there are 5 different cords connecting the battery to the device (they are red white and black in the pictures). However the battery in your link only has 3 different cords, and does not connect correctly with Charge 2 Plus (I ordered this battery and tried to install it and it does not connect as it requires a 5 cord connection). I searched everywhere and was unable to find a replacement battery with a 5 cord connection for under $99, and a new Charge 2 plus costs less than that. This article has great instructions on how to replace the battery, but its currently cheaper to buy a new one rather than replace the battery unfortunately. Here is a link to the correct 5 cord replacement battery, hopefully the price on these will eventually go down: http://www.ebay.com/itm/Original-JBL-Cha...

Steve A -

Hi!

My guess is that you can chopp of the 5 wire connection and simply resolder it to the new battery.

Since in the picture there are two red wires and two black, my guess is that it is for spreading out the current that is drawn over multiple wires.

It could also be that it is used for charging the battery but it shouldn't matter if you solder both the red ones to the only red on the new battery and also for the black wires.

I have not disassembled the charge 2 myself but I have some experience with the batterys. but does what I say make sense?

Kim A -

Sry, had to make an additional comment. I realized that I actually is a bit confused over the 3 wires from the 3.7V battery. Usually they are at 7.4 V when they have 3 wires going from the battery. So I might have missed something here.

Kim A -

It appears that the white wire probably is for some kind of monitoring of the battery. So my first thoughts should still be valid according to me. But it is always a good thing to measure everything so you dont end up frying everything.

Kim A -

I searched everywhere for a solution to this and finally found a company who offer a replacement battery for the JBL Charge 2. Ordered one last week am just waiting to receive the product and will follow up once installed. The image shown for the battery has the exact amount of wires of my original, here is the link https://www.canadianbatteries.com/batter...

Dan Clark -

Dan,

Please see my post below. The battery you ordered will work, but the positive and negative wires must be flipped.

Craig

Craig D -

Hi,

For everyone looking for a JBL charge 2 plus battery replacement (5 wire) you can buy the Carmen Sino battery on eBay.

Search for MLP12995-2P

However, these batteries (including battery link in Dan Clark's posting) have the positive and negative wires backwards and require you flip them. The male plastic clip on the end of the battery only installs one way into the JBL circuit board female connector and the way the battery arrives is incorrect.

Good luck!

PS - I do not sell these on eBay. I just had to find out the hard way and wanted to share my fix.

Craig D -

is it hard to flip the wires? special tools needed? Do I need to buy a new male connector to make the flip?

Crimson Castillo -

i had the same problem, so i used the easiest way, i used bare power ;-) just press the male connector in different direction to the female connector. the plastic isn't really strong and it's directly working. problem is when you build the battery back to it's plastic case and back to the charge body, the cable slips out bcs it's too short and less space. so i used another easy way: the hot-glue-pistole to attach the connector. everything working very well now!

arnehm -

JBL Charge 2 plus battery replacement only requires the rear grill to be removed. Once removed there is 5 little screws that hold the battery pack in place and 1 additional screw that holds the battery in the case.

You do not need to remove the front grill or subs to access the bettery.

Craig D -

Thank you. Your steps worked perfectly. I just wanted to remove my battery connection to reset my jbl charge 2 as buttons were not working for reset. Followed your steps and it worked. By the way the battery connection is on the subwoofer which is close to power button. You need to just open that woofer if you want to reset like me.

Gochi -

How to know the remaining battery cycles in JBL CHARGE 2

Anand Sunku -

Could you tell us the battery dimension? Pls. Thanks

Sinon Klaus -

I didn't change the wires but kept in charge later on I released its making this awkward noise and then I check the connections and connected it. Now it works fine I'm just concerned wether it might have damaged my battery

Seneeth Yasaswin -

my speaker got dropped from my bed and it stopped making sound so i did the easy steps to open it up to see what was wrong with it and when i opened it up this little thing fell out, its square and it has 100 on the top of it, i have no clue what it is or any thing but now i know why my speakers dont work, because this little piece broke off from some where inside but i dont know where from?!? will some one help me out with this problem because i dont want to break my speaker more then it already is, thank you for your time and patience in this matter.

lance moore -

Hi lence, what has fallen off is the SMD inductor coil.

Search ebay for 10 uH 5A inductor coli. Main did the same (breaking into pieces and landing on the passive speaker), I ordered replacement and it is described as part: B82477G4103M EPCOS. I paid some 1,5 EUR + p&p.

piwex69 -

The battery of my JBL Charge 2 (without the +) has ended the lifespan. Replacement of this part is much easier than the steps for the Charge 2+.

You only have to follow step 1, 7 and step 8 described above. The connector for the battery is located right behind the battery itself.

I ordered my replacement battery in Germany at CellePhone. The battery size of Charge 2+ seems the same as of Charge 2.

But be aware: you have to exchange the red and black wires from the battery! With e.g. a needle the metal contacts of the plug can be disassembled. Don't shortcut them!

Now the JBL Charge 2 plays again my favorite music. :-)

A. Hebel -

With the Carmen Sino battery you do not need to resolder the wires. You can use a craft knife and carefully pry the plastic tabs opposite the key way on the opposite side of the connector. Once you lift the tab gently you can pull the red and black wires and swap sides. The white wire can remain in place. By the way the double red wires and double black wires are duplicate wires to handle the higher current demands. So there is no polarity or potential differences between colors. Hope this helps.

Rogelio Martinez -

Hy

My battery is not working on charge 2+

Can i draw power directly from power bank?

Which wires to cut and which to solden?

Two red

Two black

One white

Thanks

Drazen -

Some things about these directions. It is only necessary to to remove the passive radiator at the end where the battery wire is attached. No mention of the cone in front of the passive radiator, which need to be removed & held in place when the screws from Step 2 are replaced. Other than that, these directions were exactly what I needed!

j238 -

Jbl products are always best and now these can be brought with discount offers. Use JBL discount offers to save at these products.

Deepika Arora -

MLP912995-2P Extended Battery for JBL Charge 2+, Charge, 6000mAh sold by WalMart.com for $26.99 delivered is the exact replacement for the 2+. I learned the hard way.

Paul Espeseth -

both kinds of batteries (they swapped the red and black wires over in a later revision) are available on AliExpress too - > https://www.youtube.com/watch?v=vWleIMuY...

franco -

The power suddenly went out on my JBL Charge 2. I suspected it wasn’t the battery because it was fully charged an hour before. So I followed the instructions to access the battery and then disconnected and reconnected battery to the board. That fixed it. Thank you Ifixit

Daniel Bernstein -

so i replaced the battery on my charge 2 plus with the one listed above on ifixit website. when i plug it int to charge the battery it just flashes on the first battery light forever. so i reset the charge 2 by holding the phone and volume up button at the same time and now it turns on when plugged in and makes a really loud but deep beaping sound over and over even if its connect to my phone. Any help would be great.

Rob -

this speaker will not a charge why?

gaylordwellmaker4031 -

Tried to charge it 24hours plays for 10 minutes and then stops.

gaylordwellmaker4031 -

Hi John,

Great how-to!

Ive changed the battery, only now the battery indicator is still going as fast as the old 1 did, but i last like forever. Do you know how to reset the indicator led?

Thanks in advance.

Iemand home -

Thank you for this guide! I managed to replace my battery and now it works perfect!

Dieter Keijzer -

Thanks I managed to fix mine

new124 -

Changed battery, no problem.

Charged via usb. Turned on while connected with charger. Did not turn on when not conected.

The workaround is turning it on while connected to charger and then disconect, it works well then.

Any idea how to turn it on without a charger?

Flix -
