JBL Charge 3 Akku Aufrüstung

Geschrieben von: NGUYEN Anh
  • Kommentare: 63
JBL Charge 3 Akku Aufrüstung

Schwierigkeitsgrad

Mittel

Schritte

7

Zeitaufwand

30 Minuten

Einleitung

Hier wird der Austausch des Originalakkus durch Li-Ionen Zellen vom Typ 18650 mit höherer Kapazität gezeigt.

    • Das Zerlegen des JBL Charge 3 ist relativ ähnlichwie bei der Xtreme. Schau bei YouTube unter dem Stichwort 'Charge 3 Dissemble' nach.

    • Hier ist der Link

    • Hinweis: es ist nicht nötig, die beiden Lautsprecher auszubauen.

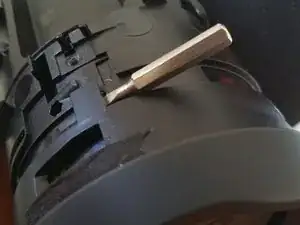

  2. saoXpQG1mCS6faiw
    saoXpQG1mCS6faiw
    oIVZUxNGFRWbCnJI

    • Um den Akku zu entnehmen, musst du den rechten Bassstrahler ausbauen.

    • Achte auf die beiden Kunstoffrasten, du musst sie beide mit einem geeigneten Werkzeug hochhebeln.

    • Wenn du beide Rasten oben hast, kannst du verseuchten, den Strahler gegen den Uhrzeigersinn zu drehen.

    • Beim ersten Mal kann das sehr schwierig sein. Du brauchst keine Bedenken zu haben, es gibt keine Kabel am Basstrahler.

    • Wenn du ihn etwa 1,2 cm verdreht hast (oder es nicht mehr weiter geht), kannst du die Abdeckung des Strahlers abnehmen.

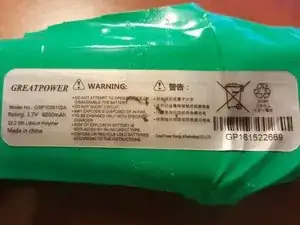

  3. lUqINq52wx4LBVcN
    lUqINq52wx4LBVcN
    CoU3vqTOYRxPKfbb
    OJKHRRq2gUjmplok

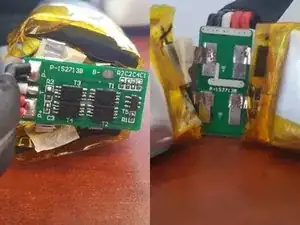

    • Trenne die Kabelverbindung vom Akku zur Hauptplatine, bevor du den Akku herausholst.

    • Der JBL Akku ist ein Lithium-Polymer Akku.

    • Marke: GreatPower

    • Modell: GSP 1029102A

    • Daten: 3,7V 6000 mAh 22,2 Wh

  4. e1OddjBRrynUkdLk
    e1OddjBRrynUkdLk
    QFxa1OJZ2CcSiY3q

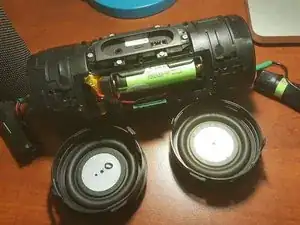

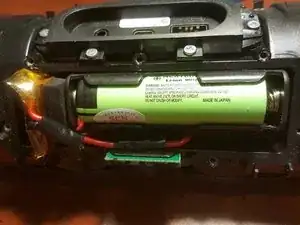

    • Möglichkeit A: Kaufe den exakt gleiche Akku zum Austausch. Das ist einfach und braucht keine weiter Erklärung.

    • Möglichkeit B: Ersetze den Akku durch Li-Ionen Akkus 18650, erhältlich aus China.

    • Ich selbst habe mich für drei Zellen Panasonic 3400 mAh NCR-18650B entschieden. Zwei sind ungeschützt, eine geschützt.

    • ACHTUNG: achte darauf, dass alle Akkus vor dem Einbau die gleiche Spannung haben. Pass auf, dass es keinen Kurzschluss gibt. Möglicherweise musst du sie vorher erst ausgleichen.

    will it be an issue if I use 3 Protected batteries instead of 2 Protected and 1 UnProtected?

    Naseef Fatemi -

    What do you mean with 2 unprotected and one protected.

    Maman Spoon -

    Can I use only 2 pieces of Sanyo high capacity 18650 unprotected battery? Thanks…

    Ninoneil Jimenez -

    “protected” batteries incorporate some small electronic circuit to prevent over-charging and over-discharging. See also: https://www.fenix-store.com/blog/what-is...

    But: I must say, the author is not clear (contradictory) on where he put the protected one and where he put the two unprotected ones.

    I thought: Since there is a small BMS-protection-board, the two unprotected batteries are to be soldered to the board. The one “protected” battery should be the one *not* connected to the BMS-protection-board.

    I might be wrong. Please clarify.

    Paul Klumpp (Hau0r) -

    I also find the explanations quite confusing as it says to connect both protected and unprotected to the bms board…. Why not use all protected for extra safety?

    Mikael Jonsson -

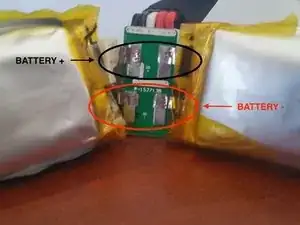

  5. AXZDZGADIVRJZNLC
    AXZDZGADIVRJZNLC
    pIm2ucrOGuts62E3
    Q63P6lKZiKiJVbPs

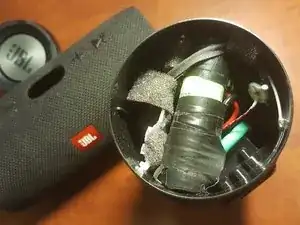

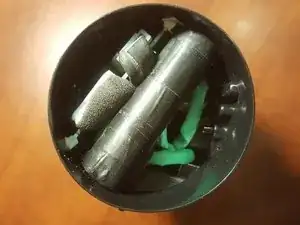

    • Du musst sie parallel verdrahten. (1s3p-Anordnung)

    • Die beiden ungeschützten Zellen werden an die BMS-Schutzplatine angelötet. Das schwarze Kabel muss an B+ angelötet werden, das rote Kabel an B-.

    • Damit es beim nächsten Austausch einfacher geht, habe ich die farblich gleichen Drähte des Akkuanschlusses nur verdrillt und mit Isolierband verklebt.

    • Eine ungeschützte Zelle kommt in das originale Akkufach (wie gezeigt) und an einer Seite der BMS Platine angeschlossen.

    • Zwei Zellen kommen in die Abteilung hinter dem Basstrahler. Die ungeschützte Zelle (rechts vom Strahler) wird direkt an die BMS Platine angeschlossen.

    • Die geschützte Zelle (ich habe die Akkuplatine neu und anders eingesetzt, damit sie in das Lautsprecherfach passt) wird parallel zur geschützten Zelle auf der anderen Seite des Bassstrahlers angeschlossen.

    Using red circles to mark negative and black ones to mark positive is a little bit confusing in my opinion. Double check the PCB marks when doing this.

    victor -

    That's right bro hahaha

    allen_ibay -

    Why solder black to B+ (positive) and red to B- (negative)? Shouldn’t it be the other way around?

    I also wonder why you use 2 unprotected and 1 protected battery? Why not use 3 protected ones?

    Mikael Jonsson -

    Hallo,

    kann ich auch drei geschützte Batterien nehmen?

    Vol Khan -

    NCR-18650B fits on neither side of my speaker - it deforms the speaker tube and makes it impossible to remount the bass radiators.

    My NCR-18650B is 65 mm long; how long are the batteries you used?

    Lysander Heuson -

    Got a question, on this 1s2p bms board, can I connect 3 cells? Consequences to it?

    I have got access to only unprotected cells, hence have to connect those to the board. I am considering 2 cells in parallel to one side of bms board and 1 cell to the other side.

    The bms board has got 2 chip controllers. The chip controller with 2 cells in parallel should treat them as 1 single cell.

    What do you all think? Effective solution or not?

    shashwat319 -

    Just tried this with 3 protected cells and now realised why he chose only 1 protected. The length of the protected mean they don't fit in behind the radiators. Circuit is a protection circuit so not sure if this would handle the protection.

    Would have been better to explain choice of cells in article as now stuck needing 2 unprotected cells or disassemble protected ones …

    Gary Collier -

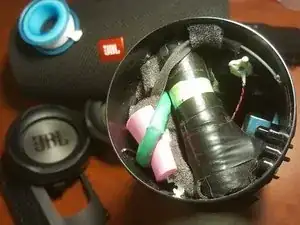

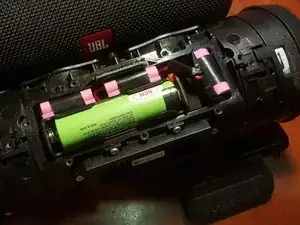

  6. 6i1bXebFmLBG6Q6o
    6i1bXebFmLBG6Q6o
    OHYxvNJqSMI3gSUl
    OysA4VZjF4kwM2Wd

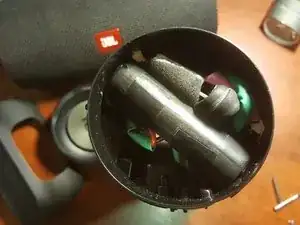

    • Hier sind Bilder zum Vergleich.

    • Hinweise

    • Ich habe einige pinke Schaumstreifen angebracht, damit die Drähte nicht klappern können und sicher sind.

    • Der Halter der Zellen ist mit Silikon am Akkufach befestigt.

    • Die Zellen im Akkufach rechts passen so genau, dass sie auch ohne Klebstoff halten werden.

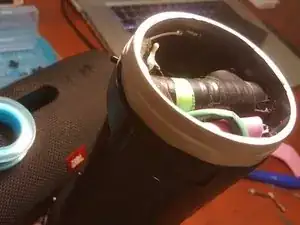

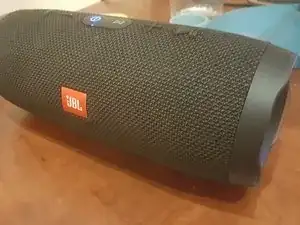

  7. IGpCDSHpYcS22kHP
    IGpCDSHpYcS22kHP
    arnU2lXAmKOGmbct
    XTKtSXpc1FJcYW1v

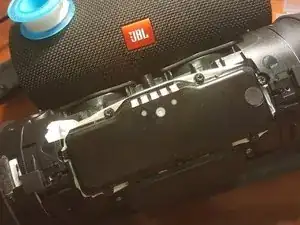

    • Setze alles in umgekehrter Reihenfolge zusammen.

    • Achtung mit den Schrauben, du kannst sie leicht überdrehen.

    • Ich habe zur Sicherheit alles mit starkem Klebeband wasserdicht verklebt, da die originalen Dichtungen beim Öffnen unbrauchbar geworden sind.

    • Hinweis: Verklebe alles gut, so dass du keine Nebengeräusche hören kannst, besonders wenn Basstöne gespielt werden.

    • Viel Glück und viel Spaß!

    Hi NGUYEN Anh, can i use 26650 5000mAh battery instead of 18650 3000mAh to replace the original battery? Soldering it to left and right of its BMS? Hope you reply the soonest! Thanks man. :D

    MarHarBet -

    You think 26650 battery will fit? 26mm x 65mm? If you can try to fit it, i’ll finally buy this battery that clearly has more juice in it. :D

    MarHarBet -

Abschluss

Um dein Gerät wieder zusammmenzusetzen, folge den Schritten in umgekehrter Reihenfolge.
