JBL Clip 3 Speaker Replacement

Geschrieben von: Tyler Molden
  • Kommentare: 1
JBL Clip 3 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 30 Minuten

Einleitung

This guide is to help you replace the internal speaker in a JBL Clip 3.

If the original speaker in your JBL Clip 3 stops working due to a mechanical failure and causes the speaker to produce no sound at all or an unpleasant buzzing or scratching sound, use this guide to replace it with a new speaker.

Note: Before beginning, make sure to power off the JBL Clip 3, and disconnect it from any external power sources.

  1. BOpGc6lTaVddjyCM
    BOpGc6lTaVddjyCM
    CBDVHEIwKLZZdQDZ

    • Insert the iFixit opening tool between the speaker grill and speaker housing and pry around the entire perimeter of the device until the grill releases.

    • A strong adhesive attaches the grill to the housing, and requires some time and patience to break. Use mild heat to loosen the adhesive if necessary.

  2. HdU4vrKWjkmoUv3j
    HdU4vrKWjkmoUv3j
    x5KDxtNd5PC1unXY

    • Use a Phillips #1 screwdriver to remove the five 6.3 mm screws around the perimeter.

  3. EgNqUvkMwuHOOLqO

    • Separate the speaker housing from the rest of the body.

    • This requires minimal force; they are not glued together.

  4. QlGUcNlJZwq1uMXj
    QlGUcNlJZwq1uMXj
    6sAsMitOoVoDCbKR

    • Use tweezers to remove the 2 pin and 4 pin connectors from the motherboard.

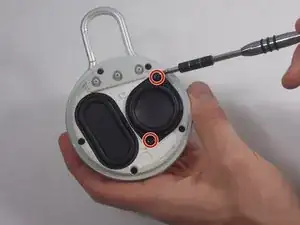

  5. WWbPEkDuNmx1JIeV

    • Use a Phillips #2 screwdriver to remove the two 6.3 mm screws.

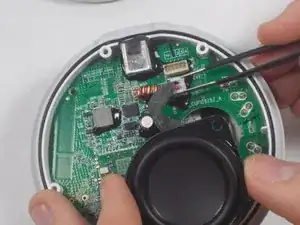

  6. KQ2RsBANKGMGjFXx

    • Firmly grip the speaker connection plug with tweezers and pull it straight up, perpendicular to the motherboard, to release it.

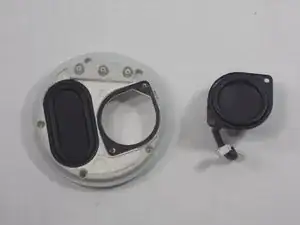

  7. bT2DiYUjDsIXyFLD

    • Lift the speaker out of the housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
