JBL Flip 3 Lautsprecher austauschen

Geschrieben von: Faizan Naveed
  • Kommentare: 22
JBL Flip 3 Lautsprecher austauschen

Schwierigkeitsgrad

Mittel

Schritte

5

Zeitaufwand

30 Minuten

Einleitung

  1. YBKC2uHoGkwrCTSQ
    YBKC2uHoGkwrCTSQ
    wlVQltUedjSuL4DL
    VM6v3JuWFuQR1AMh

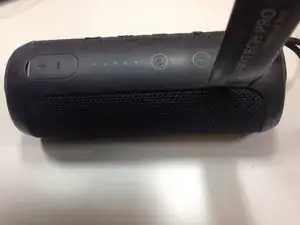

    • Heble mit einem Öffnungswerkzeug, wie gezeigt, die Lautsprecherabdeckung hoch.

  2. X6nVSX1hZLAbChCR
    X6nVSX1hZLAbChCR
    gZHAImWZfgMAwsIM
    IoHyHJZw1ak3sNyJ

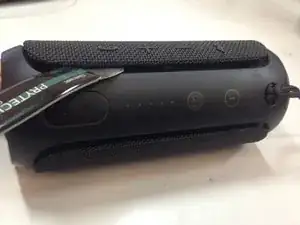

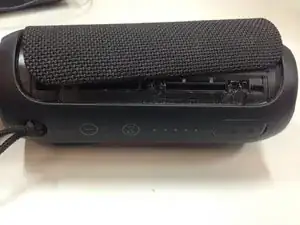

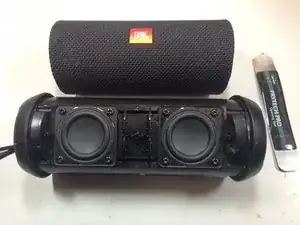

    • Fahre mit dem Öffnungswerkzeug ganz um die Abdeckung herum, bis du sie abnehmen kannst.

  3. vosowBUPavHXeDDl

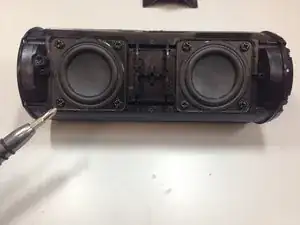

    • Entferne die acht Kreuzschlitzschrauben #00 an den Lautsprechern.

  4. cC4gdYTAshKEvAVu
    cC4gdYTAshKEvAVu
    RF3ClcyZtMXyqtLu

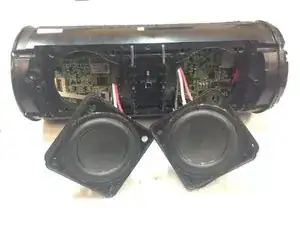

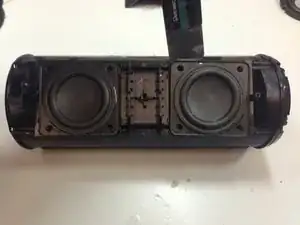

    • Löse die Lautsprecher mit einem Öffnungswerkzeug vom Gerät.

  5. Of4JDsFiUfFMieUG
    Of4JDsFiUfFMieUG
    nssh11kg5GEQeSDx

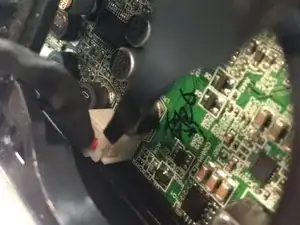

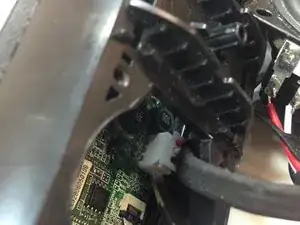

    • Löse vorsichtig mit einer Pinzette den Anschluss der Lautsprecher von der Hauptplatine ab.

    Some do not have a snap on cable. I did this and it rip the prongs out of the board.

    Todd -

    how much to repair the speakers

    Darrian Herbst -

    i have one speaker that needs to be replaced

    Darrian Herbst -

    Worst “repair guide" ever. Just…it’s just bad, folks. I’m d@mn near speechless, and that's rarely the case. Just ask your mother. You know, that fat b¡tch that is reading this over your shoulder.

    Johnny Johnson -

    Good morning! Where can I bring my jbl flip 3 for repair? Thanks

    zenaidamalong -

    Where can I buy the new speakers to replace the ones that aren’t working??

    thomas.turcotte -

Abschluss

Um dein Gerät wieder zusammenzusetzen, folge den Schritten in umgekehrter Reihenfolge.
