JBL Flip 3 USB Anschluss austauschen

Geschrieben von: College Student
  • Kommentare: 30
JBL Flip 3 USB Anschluss austauschen

Schwierigkeitsgrad

Schwierig

Schritte

7

Zeitaufwand

30 - 35 Minuten

Einleitung

  1. GJjDZJcqEmRFVZTM

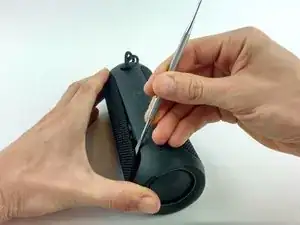

    • Löse die äußere Kunstoffabdeckung mit der Hand oder einem Spatel ab.

    • Wichtig! Beachte die drei Führungsstifte innen an der Abdeckung. Setze beim Zusammenbau diese Stifte in die entsprechenden Löcher im Gehäuse, bevor du die Kanten wieder einrasten lässt.

  2. tLFWPRItJj6RC1SQ

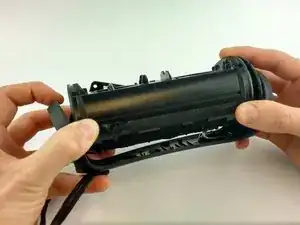

    • Entferne vorsichtig den äußeren Rahmen, damit du an die inneren Bauteile des Lautsprechers gelangen kannst.

    ACHTUNG: Dazu muss man zum einen auf der Lautsprecherseite an beiden Enden jeweils 2 Schrauben lösen (siehe “Step 3”, warum auch immer einem das erst in einem Folgeschritt gezeigt wird), zum anderen auf der anderen Seite (neben den Bedienelementen) jeweils 3 Schrauben auf beiden Seiten. Versäumt man letzteres (wie es mir ergangen ist, weil in der Anleitung ja nichts davon stand), geht der äußere Rahmen auch ab, allerdings brachen dann die dünnen Plastikösen, in denen die 6 Schrauben steckten, ab! Was für den späteren Zusammenbau und die Stabilität des Gehäuses alles andere als günstig wäre (und bei mir so ist ;-(

    Sebastian Plickert -

    /!\ WARNING /!\

    Remove the screws of step 3 (each side) + 3 screws on each side. There’s a total of 10 screws to remove before removing the piece as shown.

    Also pay attention to the plug hatch.

    (hope you’ll read this before damaging your speaker)

    Matthis RIVAT -

  3. bl4hMjZCXiIlPk2S

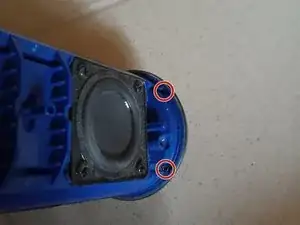

    • Löse die Schrauben, um den äußeren Rahmen zu entfernen.

    To avoid confusion and possible damage I feel that this should be step 2 instead of step 3, or should be added to step 2. A mention of how many screws need loosening would help tons too.

    My unit required the loosening of 4 total #00 Phillips screws exposed on both sides and also required the removal of 6 additional #00 Phillip's screws holding down the outer frame on either side of the long section.

    Daniel Feynman -

  4. HQScKJBAvIseAG1N

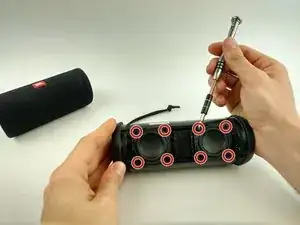

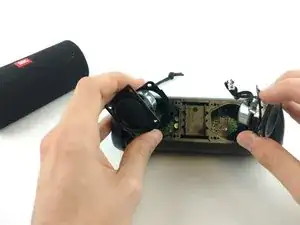

    • Entferne acht 8,9 mm Kreuzschlitzschrauben, um die Frontlautsprecher zu lösen. Lege die Schrauben und die Frontlautsprecher sorgfältig zur Seite.

    Not sure if my unit is a later revision or had been opened up before, but the screws I encountered holding the drivers in place were 8 #2 Phillip's screws of similar measurement.

    Daniel Feynman -

  5. cwhiMuJwZl3TLCgU

  6. AtvBniZkqZGVbkhR
    AtvBniZkqZGVbkhR
    WsNLVAkc21TkWiEA

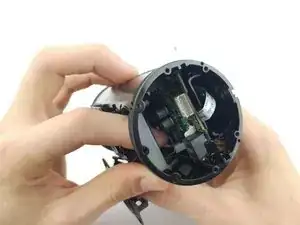

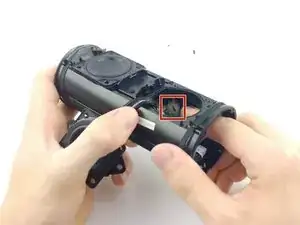

    • Entferne den Stecker mit den drei Kontakten vom USB Anschluss.

    Where can I get a usb chip from?

    Alan Hall -

  7. JeyLEMxBgFMRUcmt

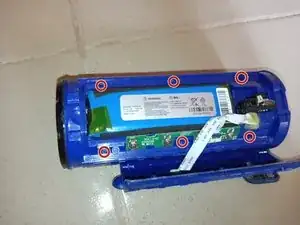

    • Entferne die Schrauben, so dass der USB-Anschluss frei wird.

    I removed all the six screws but the cover doesn't budge. Could it be glued?

    hexa dezimal -

    After removing the screws, you can lift up the upper part containing the switches, the LEDs and the cover of the USB port, hence revealing the view on the battery and the delicate ribbon cable as shown above.

    However, the USB plug and its daughterboard are still attached to the motherboard. In order to replace the USB plug, we would need further instructions on how to remove ist. I do not understand why the guide ends at this point. Without this information, the guide seems pretty useless to me.

    Additionally, In my case, the USB plug, its daughterboard and the ribbon cables are fixed to the main compartment with some sort of black as well as yellow glue. Any idea how to remove that, without further damage?

    Sebastian Plickert -

    Bei mir ist das Flachband gerissen, als ich den Akku wechseln wollte. Kann man das noch reparieren? Bzw gibt es eine möglichkeit es auszutauschen?

    Sven Pitz -

Abschluss

Um dein Gerät wieder zusammenzusetzen, folge den Schritten in umgekehrter Reihenfolge.
