JBL Flip Battery Replacement

Geschrieben von: Dillon
  • Kommentare: 57
JBL Flip Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

Keine Schätzung

Einleitung

  1. mewKgSZIvkFpTjpu
    mewKgSZIvkFpTjpu
    YFUFWvn63hUqEYVM
    6F5wvymCpuZZ5bJt

    • On the end with the buttons, remove the end cap using the flat head screwdriver to get between the rubber lining and the plastic.

    • After the cap is removed, unscrew the two 3.3mm screws using a size 1 ph screw driver.

  2. YHStdyX25GNP4eGs
    YHStdyX25GNP4eGs
    FnYSLIot1JMKXvhq
    SGZEqXpQ1RRV5g5S

    • Unscrew four 3.3mm screws on each end of the JBL using a size 1 ph screw driver (8 screws total).

  3. iKRRhJR3TY6lItGB
    iKRRhJR3TY6lItGB
    RkL3bqLLAIQaDUTE
    geYAHFNB2Rf2DWAB

    • Remove outermost white casing by gently lifting up on one side.

    • Remove two 5mm screws holding the silver back plate in place with a size 2 ph screw driver.

    • Gently lift up and remove the silver casing.

  4. 5tphmaSS6vijvoRP

    • Remove last white back plate to expose the back of the speaker cover.

    the metal cover looks upside down to me: holes for rubber legs and DC jack should not come on one side (like in the pictures above)

    Albrecht Duerer -

  5. k2PnIkXKGXimRh3Y
    k2PnIkXKGXimRh3Y
    SLCckYnFuFZQWFvC
    NFtBmtgSG4aX4HxI

    • Pry the four tabs on each side of the speaker cover (8 tabs total).

    • Pry the two tabs on each end to remove the cover (4 tabs total).

    • Slide speaker out of metal speaker cover.

  6. cUtJlmFBVYEvMlfb
    cUtJlmFBVYEvMlfb
    LhMaGoXOmFeiIV1c
    BJWGDtLr4UQGCORH

    • Remove 5mm screw in the middle of the back of the device with a size 2 ph screw driver.

    • Unscrew the two 5mm screws on each side using a size 2 ph screwdriver.

    • Open the speaker.

  7. y1DEF6v2R1BYIOtr
    y1DEF6v2R1BYIOtr
    I6s6sFZfYFEJI3Bv

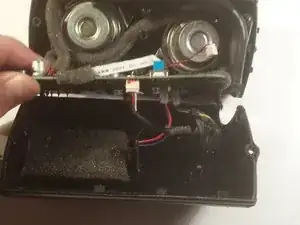

    • Slowly peel the motherboard away from the black glue on the underside.

    • Make sure the battery below the motherboard is turned off before proceeding.

  8. PXhMyZplSsrxMDM2
    PXhMyZplSsrxMDM2
    ohtGYIYmFafl1VAq

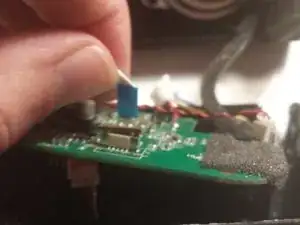

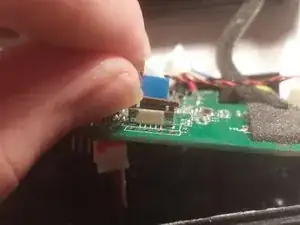

    • Push brown tab up and gently pull connector out.

    When your reassembling make sure this cable is properly seated and connected. Once connected give it a slight tug upward. If it’s in properly it shouldn’t budge. I did not do this and when it was all back together , there was no power. Went back in and found this cable had dislodged.

    Jeffrey -

  9. Rp45QA3ITqKS1GkD
    Rp45QA3ITqKS1GkD
    ePnKTumdtT3GKyBX
    1HDpLCruysCXL1p1

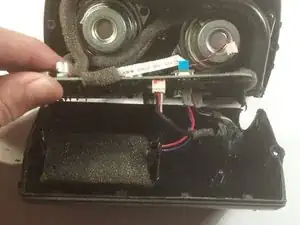

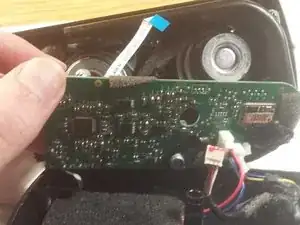

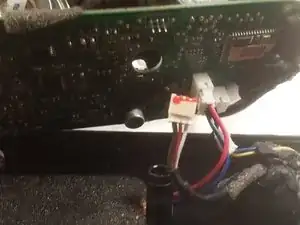

    • Remove the first two connectors on the underside of the motherboard.

    It was here that I had some difficulties. The one connector furthest away on the under side would not disconnect. So I left it , the repair could still continue but you just couldn’t lift the circuit board all the way up

    Jeffrey -

  10. gVDZNQKOmFGdODjO
    gVDZNQKOmFGdODjO
    oRJRC62Z2IvAlg2I
    Sa16RZJm5Vf5TAAm

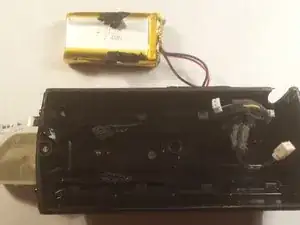

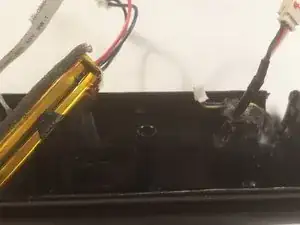

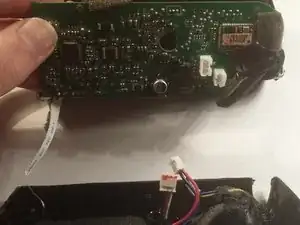

    • Remove last connector.

    • Remove battery and replace.

    Where can, I get the battery

    bbatiste78 -

    Where can I found the battery AEC653055-2s Rating 7.4V

    bachibachi6 -

    My JBL Flip battery has been dead for a few years now, and only holds about a 5min charge. I always kept it plugged in when using, so even now that the battery is toast, I don’t mind.

    Johnny -

Abschluss

To reassemble your device, follow these instructions in reverse order.
