Einleitung
If your JBL Go will not charge, use this guide to replace the charging port, which will require replacing the motherboard that contains the charging port.
Werkzeuge
-
-

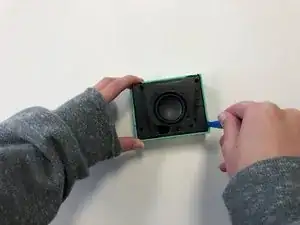

Use an opening tool to scrape around the outside of the front cover to remove the glue attaching it to the surrounding rubber layer.
-
-
-
Once you have scraped off all of the glue, use the opening tool to pry up the front cover.
-
-
-

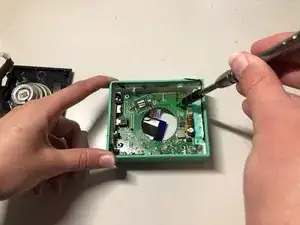

Once the front cover is removed, use a T6 screwdriver to remove the four 9 mm screws on the black cover.
-
-
-

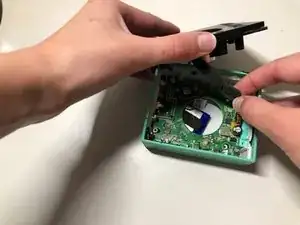

After removing the screws, use the plastic opening tool to carefully pry around the edges of the black cover to loosen and lift the cover off of the device.
-
-
-

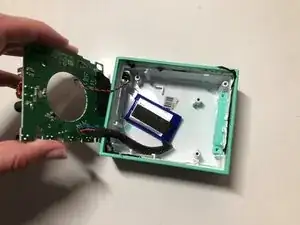

Lift the motherboard using the plastic opening tool and stick it through the hole in the middle of the board.
-
-
-

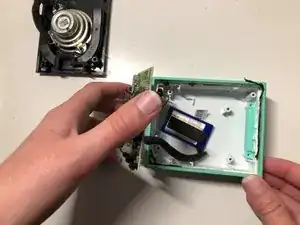

Carefully lift the motherboard, sliding the charging port side out of the frame of the speaker as you go.
-
To reassemble your device, follow these instructions in reverse order.
