JBL Pulse 3 Outside Casing Replacement

Geschrieben von: Kaitlyn Greenfield
  • Kommentare: 10
JBL Pulse 3 Outside Casing Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

10 - 15 Minuten

Einleitung

The outside casing of the JBL Pulse 3 is the top portion of the device above the speaker grill. In order to take this part off the device, you will need to have removed the speaker grill first. For more information regarding troubleshooting, please visit our Troubleshooting Page.

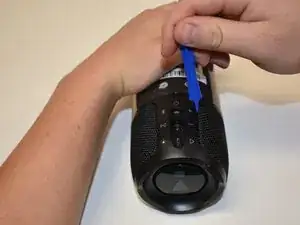

  1. osRpQQvEWALbUHPS

    • Lay the JBL Pulse 3 on its side as shown in the picture.

    • Use a plastic opening tool to lift the top right corner of the speaker grill. A small amount of force is necessary to remove the grill.

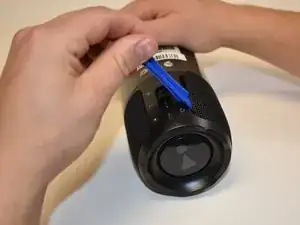

  2. 1R1PXMIT3pcCltKR

    • Repeat step 1 for bottom right corner of speaker grill.

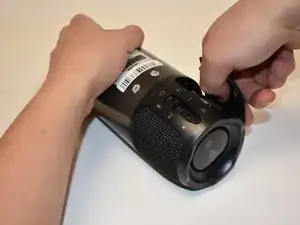

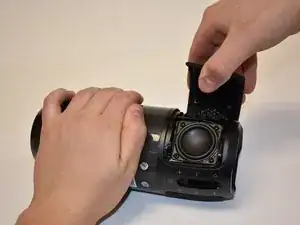

  3. ZPrneUi6ysiqEHCt
    ZPrneUi6ysiqEHCt
    pvuTAto4nieRIobv

    • After pulling the right side of the grill off, place thumb underneath grill as shown in the picture.

    • Lift and pull straight out to pull grill off the posts.

    • Repeat steps 1-3 for the left side of the speaker grill on the JBL Pulse 3. The speaker grill should now be completely removed from the JBL Pulse 3.

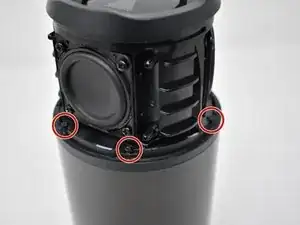

  5. pPNUxvn3dlSdQ6gC
    pPNUxvn3dlSdQ6gC
    WkWxPqFQRGjHWgpc

    • Use a Phillips #00 screwdriver to remove the six black 6mm screws on the inside of the top of the bottom section.

    #00 not required, successfully opened with PH#1

    Stephen Hoefler -

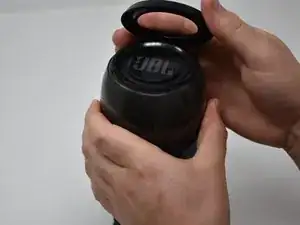

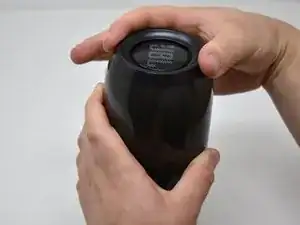

  6. VIiDV24dAPtBc2F2
    VIiDV24dAPtBc2F2
    JQLpKrOVMKxMaGUY

    • Turn the JBL Pulse 3 right-side up and unscrew the top ring of the device. A small amount of force and/or a cotton cloth may be necessary to remove this piece.

    Ca I Specifically buy the top ring

    Julian Cruz -

    I've the same concern as the comment above, can I buy the top ring separately?

    Yousef -

    Opening is not as simple as demonstrated in Step 6. I have followed everything through, am I missing something?

    Kusala Kumsinda -

    Is there any other place to get this part? It doesnt ship to the UK

    Amelia -

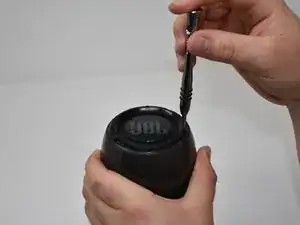

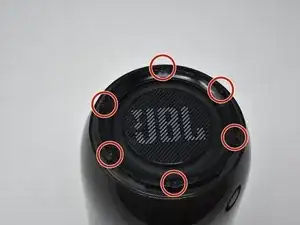

  7. hno3axXOu3AGhB2f
    hno3axXOu3AGhB2f
    A11jYshJ2XpGh4At

    • Remove the six 5mm screws on top of the JBL Pulse 3 with a Phillips #0 screwdriver.

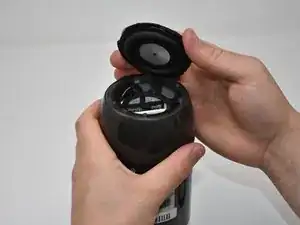

  8. KMRDVvI2aPOSZYua

    • Pull off the top disc of the JBL Pulse 3.

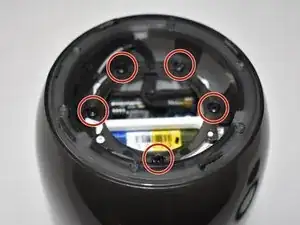

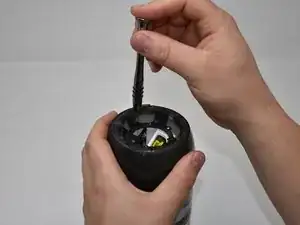

  9. NNnR2JSeLtZPSlfX
    NNnR2JSeLtZPSlfX
    y1BCuvZYxdoEQIHK

    • Remove the five 7mm screws on the inside of the JBL Pulse 3 with a Phillips #1 screwdriver.

    This phase could be difficult. Try to “twist” the speaker to have a little gap between both parts and insert gently a screwdriver or opening toile to spread the gap.

    Richard Devos -

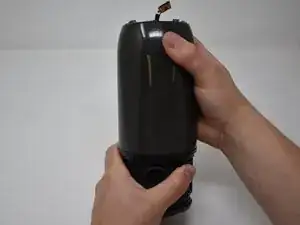

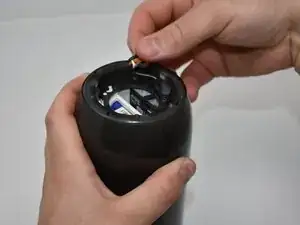

  10. nIK52M34UtlSjWZ5
    nIK52M34UtlSjWZ5
    DTBHmnflqLbCK6De

    • Peel off black, taped-on electrical lead from the inside side of the JBL Pulse 3.

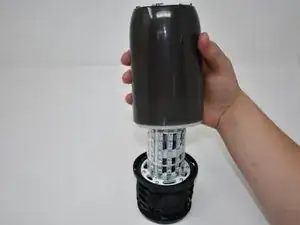

  11. lOwF4QFNlbNe6vBm

    • Pull the top section of the JBL Pulse 3 up. The outside casing to the JBL Pulse 3 should now be removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
