JBL Spyro Bottom Plate Replacement

Geschrieben von: Ryan McLeod
  • Kommentare: 7
JBL Spyro Bottom Plate Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

Keine Schätzung

Einleitung

This guide shows you how to remove the bottom plate, this provides access to the subwoofer itself.

  1. LYPurXcPJblPwnnc

    • Locate the 3 risers the hold the base plate in place

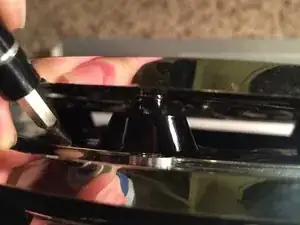

  2. MaEPMkD2xVQYCtid

    • Insert a strong spudger or flathead near the riser and gently pry until the plug starts to come out. Work your way around to loosening each one.

  3. iLWBDBbXkkgolDih

    • With all three loosened remove the base!

    • Note the not equilateral placement of the risers when replacing the base.

Abschluss

To reassemble your device, follow these instructions in reverse order.
