JBL Tune 600btnc Battery Replacement

Geschrieben von: Nick Farfaglia
  • Kommentare: 2
JBL Tune 600btnc Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

10 - 15 Minuten

Einleitung

  1. GHBA1yiDGanYqTSA

    • This can be done by prying at the base of the ear cup and moving around in a circle.

  2. K1tqoMjQUDrHxWVG
    K1tqoMjQUDrHxWVG
    WtbhRH6WHcaMEJfu
    1sM6WnRlUB5CbukF

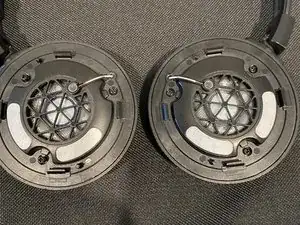

    • once the screws are loosened. Pry at the base of the driver to release the plastic tabs.

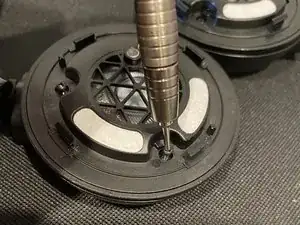

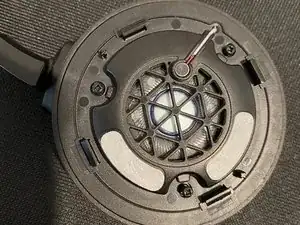

    • Loosen the three screws. Note the position of the wire feeding the driver.

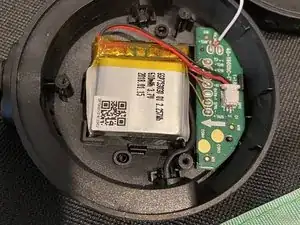

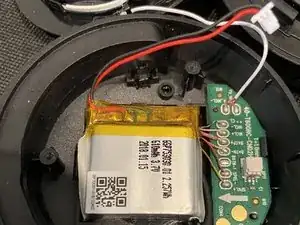

  3. SP3ETFJgtpAghaKw
    SP3ETFJgtpAghaKw
    Rm4NlONyLgXGGCtX
    tDqSkafp1vWiwXlC

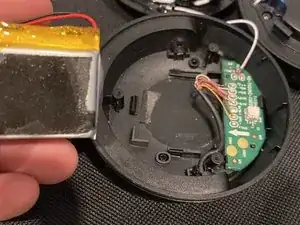

    • There is a small amount of adhesive on the backside of the battery.

    What size is connector sh 1.0mm or micro jst 1.25mm?

    John Smith -

Abschluss

To reassemble your device, follow these instructions in reverse order.
