JBL Xtreme 2 Speaker Replacement

Geschrieben von: charlymoron
  • Kommentare: 0
JBL Xtreme 2 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 - 20 Minuten

Einleitung

If you’re JBL Xtreme 2's speaker sounds disoriented or is making no sound, use this guide to replace the speaker(s). The speakers inside are used to make the bass for the experience of listening to music. When a speaker is damaged you will hear distorted music or none at all.

Before beginning make sure to power off the speaker and disconnect from any external power source.

  1. MYuTrM2HbsFHNUGE
    MYuTrM2HbsFHNUGE
    WTKQebSw5pdrgW5y

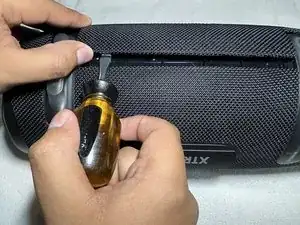

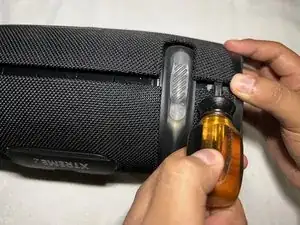

    • Use a spudger or other prying tool to gently pry open the middle section of the speaker.

  2. syLiDRpBiwIxOWad
    syLiDRpBiwIxOWad
    DRu6ZVV3tDfxaDT3

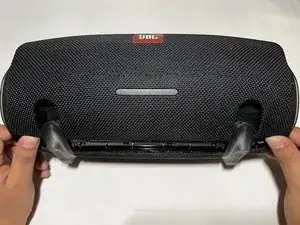

    • To open the case, open the front side gently rotating along the hinge.

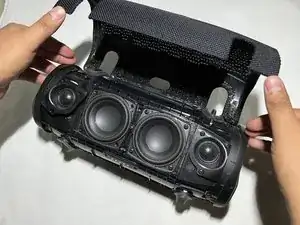

  3. d5kJx1rP6LEKAcVC

    • Once you have the speakers exposed like in the image, at the bottom part you will snap open the back end piece of the grill still attached.

  4. pjU45gChKs52YTow
    pjU45gChKs52YTow
    OILNoRJVtjQLUQxX
    YRXakAAL4JIyZO3G

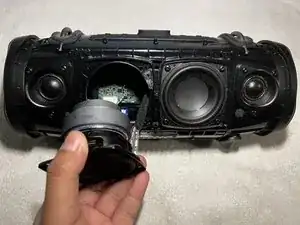

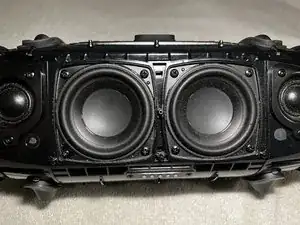

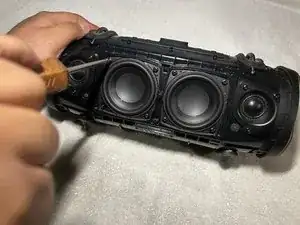

    • Using a Phillips #00 screwdriver, remove the four 12.9 mm screws securing the faulty speaker.

    • Once you remove the screws, the speaker will be loose and you will be able to move it around easily.

  5. t6BE2sDqWQRqhMpv
    t6BE2sDqWQRqhMpv
    4QJs61uLDyKB2THM
    VyZMRs1sRUfcMOB2

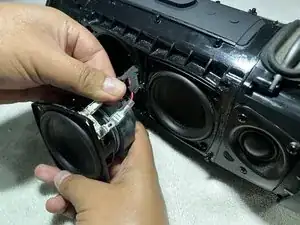

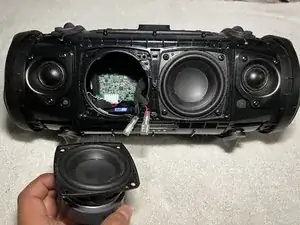

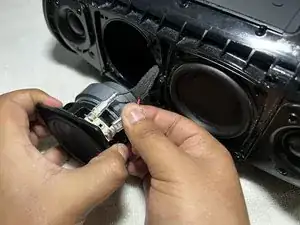

    • Lift the speaker out of its housing and you will see two cables connecting the speaker. Pull the speaker towards you and each of the cable connectors away from you.

    • Do the same for both cables.

Abschluss

To reassemble your device, follow these instructions in reverse order.
