Einleitung
Use this for a step-to-step guide on how to remove the JBL Xtreme 3 speaker shell.
Please be careful with the small screws as they are easily lost and pose a choking hazard. This is a fairly easy replacement and only takes a couple of minutes.
Werkzeuge
-
-
Find the seam on the speaker and position it upwards.
-
Begin by turning the device to where the bottom side with groves are facing towards you, using the (5) spudger carefully pry open the side of the outer shell where the red indicators are to unlatch outer shell. After they are unlatched you should be able to open the shell by hand.
-
-
-

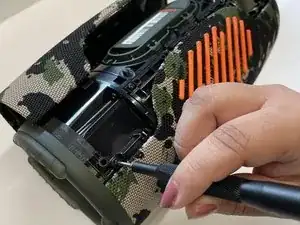

To continue to remove the outer shell unscrew the two screws (size 1cm) shown in the picture with a size 0 (zero) Phillip's screwdriver.
-
-
-

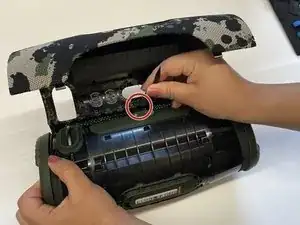

To continue to remove the shell use a (5) spudger to slowly pop the shell off.
-
There is one nudge in the center below the power and bluetooth button that should pop off.
-

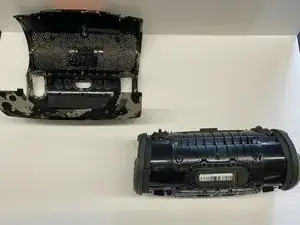

Once you have unlatched this piece correctly the shell will remove itself from the speaker itself. As it is shown in the following figure.
-
To reassemble your device, follow these instructions in reverse order.
