JD Razor 2000 Fastening Button on Handle Bar Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

The fastening button on the each of the Razor's handlebars lock the handle securely with the T-Bar. This guide will show you how to remove/replace this fastening button.

  1. rcESlm1XbWOG32xK
    rcESlm1XbWOG32xK
    UWNM5SVVYtrDPUaM
    l6xEUBQVjCwSsOxE

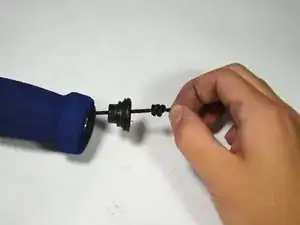

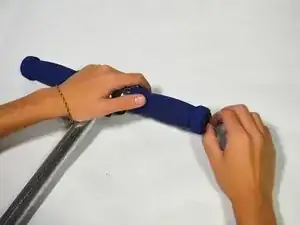

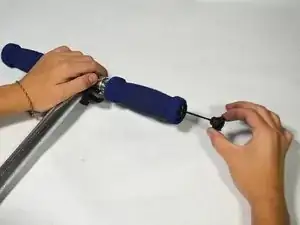

    • Firmly hold the handle bar in place.

    • Grab with one hand the black removable tip of the handle bar and pull it out.

    • Pull out the end of the tied string through the removable tip.

  2. vLIkSMEJcbbBeRy3
    vLIkSMEJcbbBeRy3
    w6efALtGwTFOCsJM

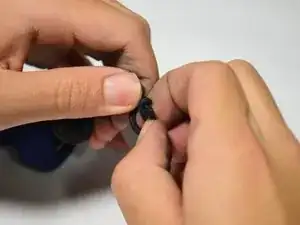

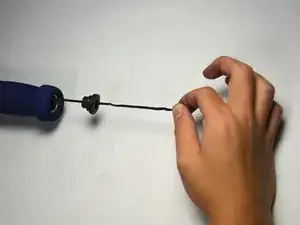

    • Untie the knot at the end of the string.

    • If you let go of the string while its in tension, it may recoil far into the other side of the handle bars. To avoid this, bring the end of the string inward towards the hollow section of the handle bar and then carefully let it go.

  3. FKRbPLjrDQM3HjLk
    FKRbPLjrDQM3HjLk
    MqgobNGXyI43WW4C

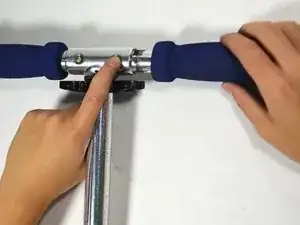

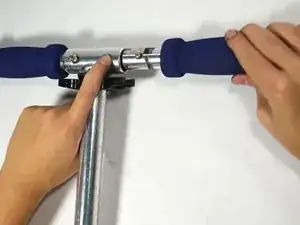

    • Press down firmly on the golden fastening button located on the handle bar being replaced.

    • While still pressing down on the fastening button, slide the handle bar apart from the T Bar.

    • When re-installing the handlebar (after completion of the guide), you may need a pair of needle-nosed pliers to thread the string back through the handlebar.

  4. 3FGcCrKOtHCiG3Sm
    3FGcCrKOtHCiG3Sm
    egmiAgkXOk5Q1bww

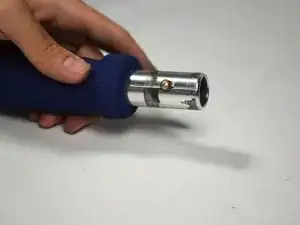

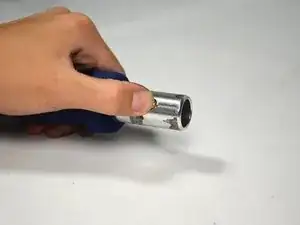

    • Press strongly down on the golden fastening button located on the loose handle bar.

  5. kwdX5UnQkdfeodvE
    kwdX5UnQkdfeodvE
    t2WY4BN5CVXFFDCV

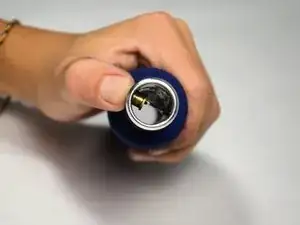

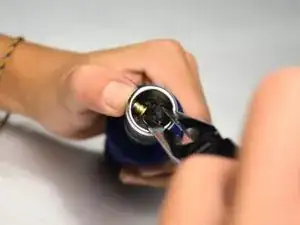

    • Tilt the opening of the handle towards you.

    • Reach in carefully with the small needle-nose pliers and firmly grab the golden fastening button.

  6. CYTHmEQKlIg5yLYA
    CYTHmEQKlIg5yLYA
    jZQtcGbDaTNPbuGg

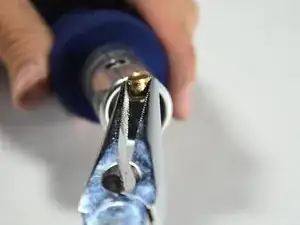

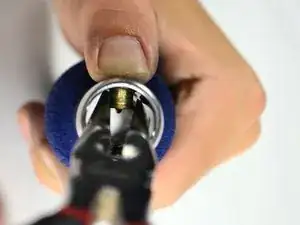

    • Once grasping the golden fastening button tightly with small needle-nosed pliers, carefully and slowly pull it out of the handle bar.

    • Do not pull out the fastening button rapidly. This may result in the button shooting across the room with great speed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
