JD Razor 2000 Quick-Release Lever Replacement

Geschrieben von: Shane
  • Kommentare: 0
JD Razor 2000 Quick-Release Lever Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

20 - 30 Minuten

Einleitung

  1. HJh1si6Lmttyhpiw
    HJh1si6Lmttyhpiw
    VCFPdTQTyN3ckJVg

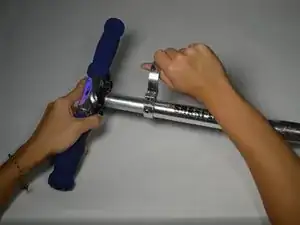

    • Unlock the quick-release lever by turning the lever from a tightened position.

  2. MODeAr4RBYSJIYdv
    MODeAr4RBYSJIYdv
    Kwf1CSMKJMueWE3n
    dEoYpNGVFbUmiZ5x

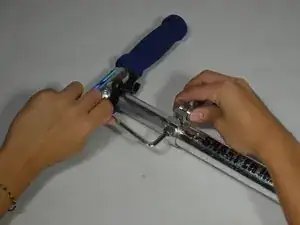

    • Use a 7/32" Allen Wrench or T25 Screwdriver to loosen the screw shown.

    • Be sure to fasten the opposite side of the screw before unscrewing.

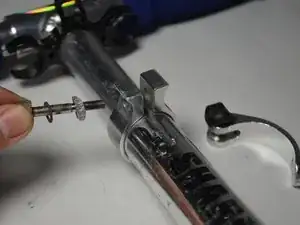

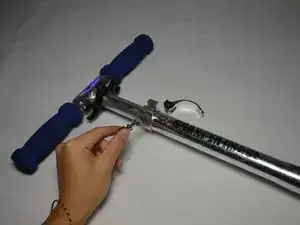

    • Remove the screw and note the order of the parts for reassembly.

  3. wVfI4DkpPfcWrDAl
    wVfI4DkpPfcWrDAl
    oRDNqEpjo5qIQUqt
    LwS3FADAuCFwgsI5

    • Turn the quick-release lever over to reveal an 8mm screw.

    • Use the Phillips #2 screw driver to remove the screw.

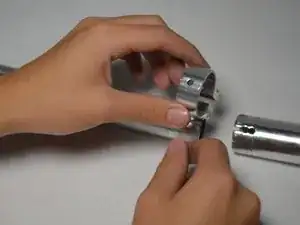

    • After removing the screw, the circular latch will be detachable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
