JD Razor 2000 Shocks Replacement

Geschrieben von: Kaylan Naicker
  • Kommentare: 0
JD Razor 2000 Shocks Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 30 Minuten

Einleitung

The shocks are located slightly above the front wheel of the JD Razor 2000 and assist the rider in braking and reduces stress on the load-bearing points of the scooter.

  1. bajEEIgMwJsZ3o5N
    bajEEIgMwJsZ3o5N
    YDFyXd2kWOCQyKDe
    FJlVcQNLfTNYpTVt

    • Orient the scooter so that the front wheel is facing you. Observe the right and left side of the wheel. Remember which is which throughout the guide.

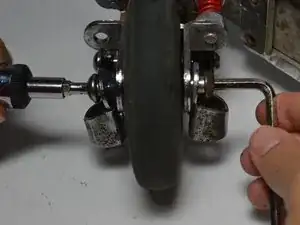

    • Using an Allen wrench, unscrew the axle bolt slowly from the right side while applying a constant pressure with your hand on the left side of the bearing.

    • If the left side of the bolt turns while you unscrew the right side, you will need to use a second Allen wrench to prevent it from moving

    • If the bolt does not move at all, or moves very little, try applying a lubricant on as much of the screw as possible and try again in 5 minutes.

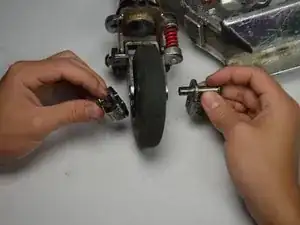

    • Carefully pull apart the bolt and bearing from either side of the wheel.

  2. qAKvlqbAIH6AA6hH

    • Grip the bottom of the wheel and gently slide it out.

  3. tVQi1SLC1HrwRA1M
    tVQi1SLC1HrwRA1M
    kqZFvXoPwGQGLSMZ
    qUVvgNc5jJBpXgya

    • Find the axle bolt behind the shocks. It should look similar to the one used to remove the front wheel.

    • Remove the bolt in the same manner as the wheel. While applying pressure to the left side, unscrew the right using an Allen wrench.

    • If the left side of the bolt rotates when you attempt to unscrew the right, use a second Allen wrench to hold it in place.

    • If the bolt does not turn at all or does not turn easily, apply lubricant to the screw and try again in five minutes.

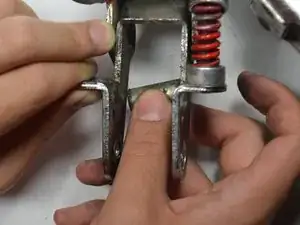

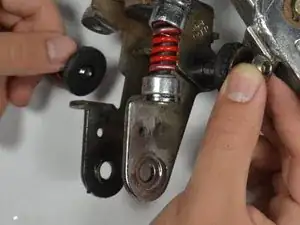

    • Remove the bolt and bearing and the black rubber stoppers. Remove the metal tube between the bolt.

  4. MHBoIEjxBsGJPbCc
    MHBoIEjxBsGJPbCc
    Lnqb5bKOvnvqeUuH

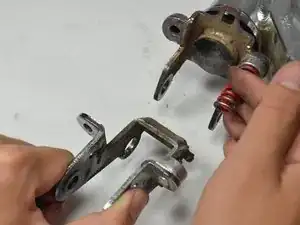

    • Firmly grasp the metal piece that holds the wheel and gently pull it away.

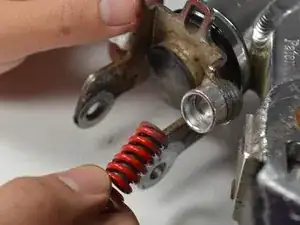

    • The shocks should fall out naturally by themselves. This is normal and expected. If they do not, gently pull the shocks out of their holders.

    • A metal cylinder is located inside the spring of the shock. Do not lose this.

Abschluss

To reassemble your device, follow these instructions in reverse order.
