JIAYU F1 Motherboard Replacement

Turn the phone off by holding down the power button located on the top of the phone.

Find the small indentation at the bottom right of the phone and pry open the back case of the phone using your fingernail or small plastic opening tool.

Gently remove the back case completely from the phone.

Insert a fingernail or the small plastic opening tool into the recess in the bottom center of the battery and lift upward.

Remove the battery from the phone.

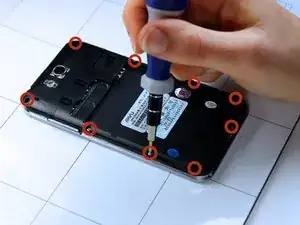

With the phone lying face down, remove the nine 3 mm Phillips #00 screws from the midframe.

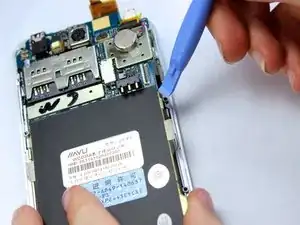

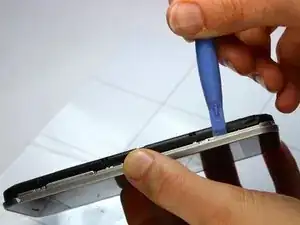

Gently run a plastic opening tool down along the left and right sides of the phone to separate the black midframe assembly from the silver display casing.

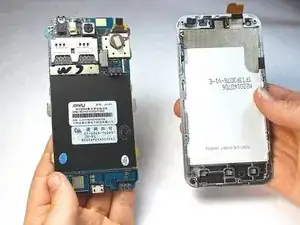

Carefully remove the midframe assembly from the display casing by pulling up and away from the phone.

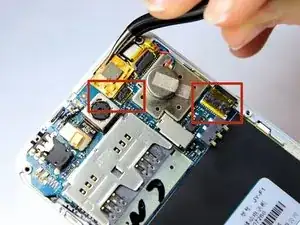

Using a precision tweezer, remove the protective stickers from the connectors.

Using a precision tweezer or spudger, carefully slide the indicated connectors out from their ports on the motherboard.

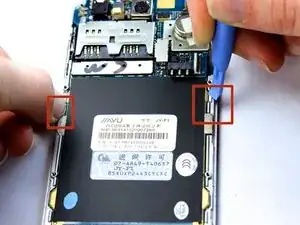

Locate the two white clips along the edge of the phone that hold the motherboard in place.

Using a finger or plastic opening tool, pull the clips away from the motherboard and hold the clips back.

Wedge a plastic credit card or opening pick underneath the motherboard to separate the motherboard away from the display casing.

Carefully lift the motherboard upward, making sure any remaining tape connectors are detached.
