JLab Pro-7 Battery Replacement

The tools needed in order to complete this task are above in the tools section.

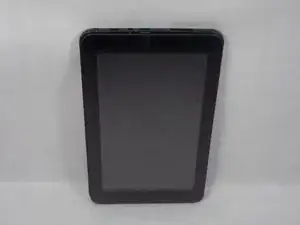

Grab your tablet and have your tools ready in order to open it and fix the components inside.

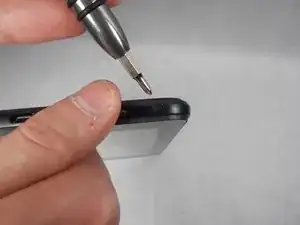

At the bottom of the tablet there are two screws.

One screw is on the bottom left corner and the other is in the bottom right corner.

Here, you need to grab a small Phillips screwdriver and carefully take out these screws. Be careful not to strip the screws when taking them out.

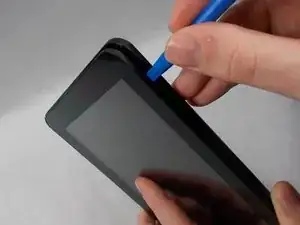

Now grab your iFixit prying tool and try to carefully pry off the back casing.

The back doesn't want to dislodge easily so make sure the end of your pry tool is underneath the screen in order to get enough leverage to start popping off the back case from the screen.

Be careful when prying the edge of your tablet! Avoid snapping the volume and lock buttons. Also try not to dig into the tablet too deep with your prying tool so you don't damage any components inside.

Make sure to make your way around the perimeter of the tablet in order to take off the back casing.

Put small amounts of pressure around the perimeter until you see that section pop off.

Keep moving your way clockwise or counterclockwise until the back is fully removed.

There you have it now the back should be fully removed.

Make sure to inspect your tablet for any damage from prying off the back panel of your panel.

If any internals did fall out or seem to be damaged check out our guides we may be able to help you!

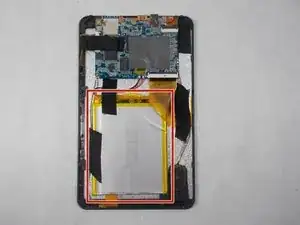

Once the prerequisite guide has been completed you will notice a large grey rectangle that takes up most of the back panel

This is the item that you will be replacing

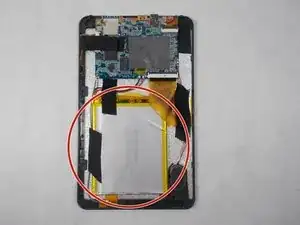

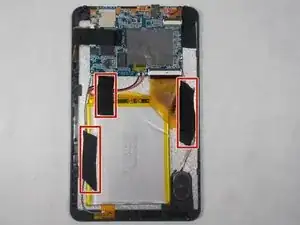

In the red circles are thermal tape that needs to be removed .

Gently remove each peace of thermal tape

The thermal tape itself isn't very sticky so there aren't any specialty tools needed

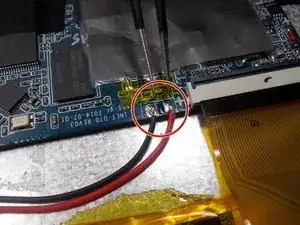

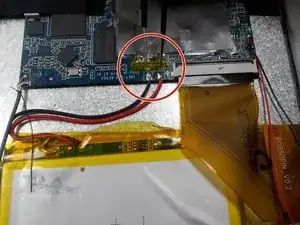

Once the thermal tape is removed, we need to remove the solder joints shown in the red circle and pointed to by our tweezers.

These are the only wires connecting the battery to the mother board.

Soldering Instructions Soldering Safety

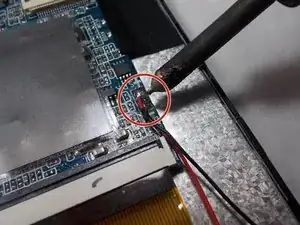

The first picture taken is from our speaker replacement guide.

Wait for your soldering iron to be hot and hold directly next to or barely touching the solder joints until they are liquid

Once the solder joint are liquid the wires are free to be taken off

The second picture is the solder joints that you want to heat with your soldering iron and then remove them in order o get 1 step closer to replacing your battery.

In this step we will be using our iFixit prying tool in order to take out the battery.

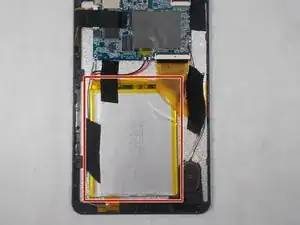

The red arrows show where you will carefully pry the battery upward in order to remove the battery from the back panel.

Use the iFixit plastic pry tool in order to pry the battery up from the metal plate it's stuck to.

Make sure to work your way around the battery marked by the red box. Slowly and gently prying up until it is completely detached from the back plate.

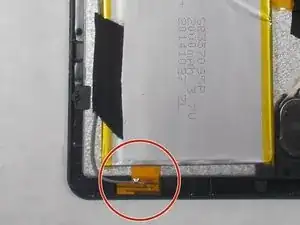

Be careful of the wireless antenna when removing the battery using the pry tool

Make sure not to pry where the antenna is circled so you don't damage your device.
