JVC Adixxion GC-XA1BU Lens (External) Replacement

Geschrieben von: Christina Michelle Johnson
  • Kommentare: 1
JVC Adixxion GC-XA1BU Lens (External) Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

5 - 10 Minuten

Einleitung

To complete this guide, you will need to purchase a new external lens and make sure that you have the tools listed. It is always good practice to make sure that the device is completely powered off and remove the battery before attempting any repairs.

  1. 4shyQt5amun1eDKJ

    • Find the side of the camera that looks like this.

  2. B2Ja4KpkSs213ws4

    • Push down on the black switch.

  3. UuBMOoDQ5IxWHGIb

    • While still pushing down on the black switch, slide back the battery cover (see photo for direction).

  4. G2BFqCBcMlljvPYA
    G2BFqCBcMlljvPYA
    MQiOEgZhZbvEMgkx

    • Push the cover up to open the battery compartment, and then push the blue battery release switch.

  5. XlJHBBAkLQ4jSR4x

    • You can now take the battery out of the camera.

  6. oDbfFbEEE252AewQ

    • After removing the battery, take out the two Phillips screws (4mm headsize x 3mm length) screws. You can now remove the battery cover.

  7. DBmQkDOlEB243uOF
    DBmQkDOlEB243uOF
    Jmx12PodLpZCCcsc

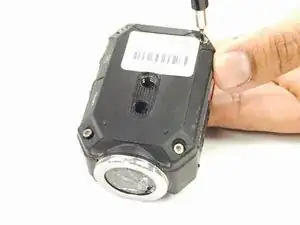

    • Using a 1x1xH1.5 torx screwdriver, remove the eight screws (5mm headsize / 4mm length) from the corners of both sides of the camera (4 screws on each side).

  8. kWoxxEEHjeDXXGMY
    kWoxxEEHjeDXXGMY
    IB6LwWHO3nmwKc2p

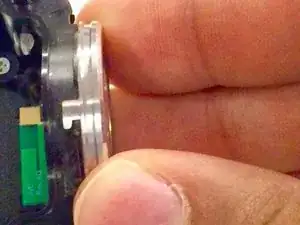

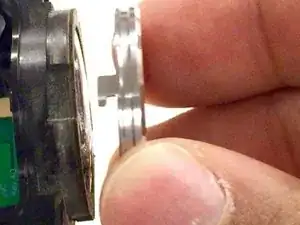

    • Twist the metal ring on the lens to the right and then pull it off.

  9. 4bMZbaP5TJie3LTJ
    4bMZbaP5TJie3LTJ
    ECSRAopvhsUYAsAY

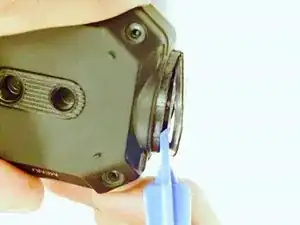

    • Use the plastic opening tool to gently pry the lens off of the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
