JVC GR-D93U Lens Replacement

Geschrieben von: James
  • Kommentare: 1
JVC GR-D93U Lens Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

1 Stunde

Einleitung

  1. bKUiCwsRrDc4dGTv
    bKUiCwsRrDc4dGTv
    DVHMsSG4yaq5PsDH

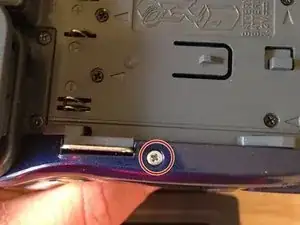

    • Unscrew two 3mm Phillips #0 screw from the bottom of the camera to remove blue plastic casing.

  2. UhVI5QxqN2WjjMUW
    UhVI5QxqN2WjjMUW
    AlZFM4YROQD1IYso

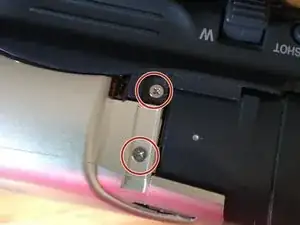

    • Unscrew two 3mm Phillips #0 screws. Then remove 6 3mm Philips #0 screws from the bottom of the camera.

  3. KJOAx1qImJGafs5p

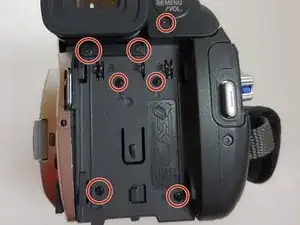

    • Unscrew 3mm Phillips #0 screws from the batter port under the eye piece.

  4. 3aH5KERQKF3X5hvM
    3aH5KERQKF3X5hvM
    VjvHIbnCVctoJCYF

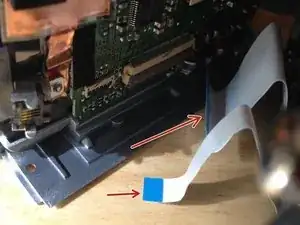

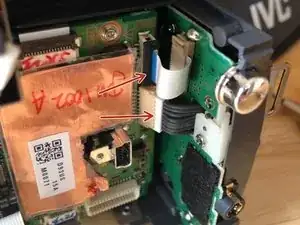

    • Now the camera can be split into two pieces. Be careful when removing the two sides and remove the cables connecting the two halves. There are also cables that need to be disconnected from the battery pack section.

  5. yOowbhP4IV5Xeh2r
    yOowbhP4IV5Xeh2r
    lCUHUjWtmnqMMgKN
    KUbWtKVFrMRgH2IN

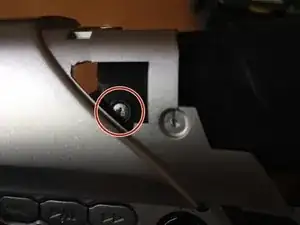

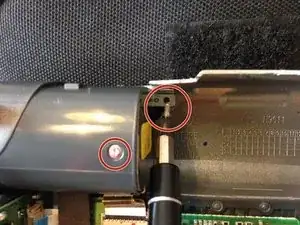

    • Unscrew two 3mm Phillips #0 screws from around the eye piece. Then flip the camera over and unscrew 3mm Phillips #0 screw. Then unscrew 3mm Phillips #0 screw from under the eye piece.

  6. RrPQWdTJMlAo2GIm
    RrPQWdTJMlAo2GIm
    lS2UO1MqXqsCKG5Q

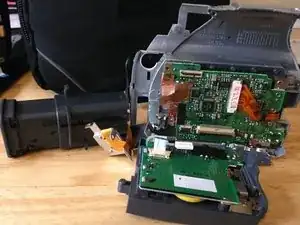

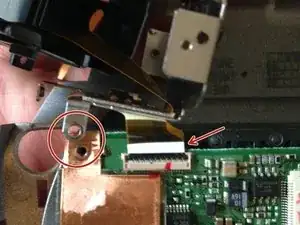

    • Unscrew 3mm Phillips #0 screw and disconnect cable. This will disconnect the eye piece from the camera.

  7. CGFrToAaFdS1PnuB

    • Remove the two 3mm screws using the PH0 screwdriver.

  8. IibCmfIh44T1uJS2

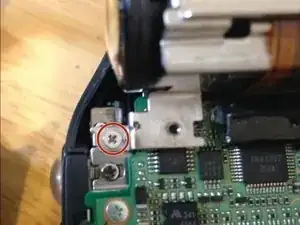

    • Remove the blue dust cover using the metal spudger. Unscrew the 3mm screw using the PH0 screwdriver.

  9. fwSV6AmCHLvoRR4c

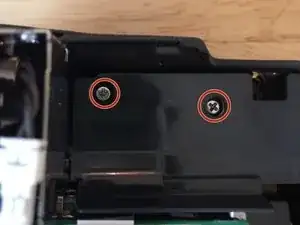

    • Remove the two 5mm screws using the PH0 screw driver. Use the metal spudger to remove plastic casing.

  10. rKjTHu3Wusw5LyMv

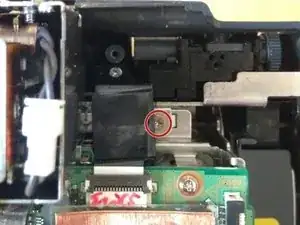

    • Remove the 3mm screw using the metal spudger.

  11. jwD24JY4cMsSxrp6

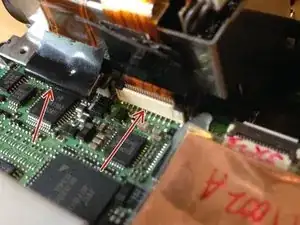

    • Remove the two logic strips by lifting the plastic clips using the metal spudger.

  12. pBSRUosUNvLdgux3

    • Disconnect the power from the lens.

Abschluss

To reassemble your device, follow these instructions in reverse order.
