Jabra Solemate Disassembly / Repair

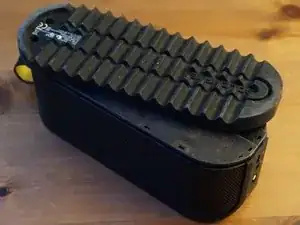

First we have to pull of the bottom rubber profile. You can easy lift it by using your fingers.

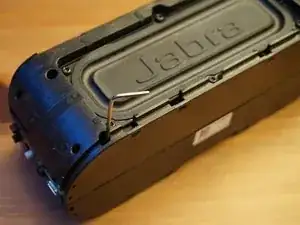

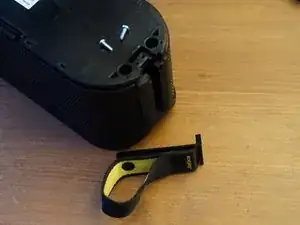

under the rubber are allocated two Torx 6 Screws which hold the strap in place. Loosen them to remove the strap.

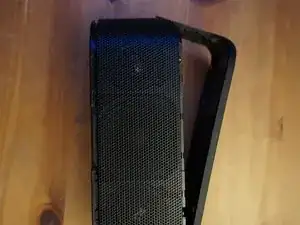

At the side of the removed strap the cover is fixed with an adhesive tape. Gently bend the plastic that the adhesive tape will loose.

at the upper side you have to loosen 2x3 plastic snaps. At the other side, where the button and usb port is allocated, a second adhesive tape holds the upper case.

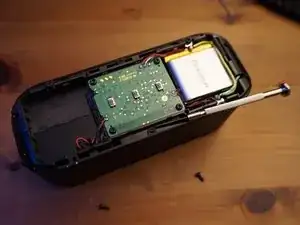

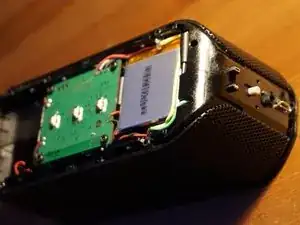

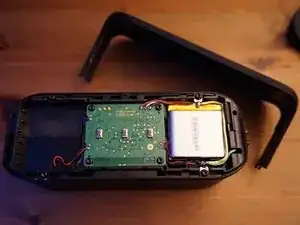

Now you can see the Main PCB and the Battery.

Here i could fix my problem of the not reacting device. I unsolderd the thicker red cable of the battery for a few seconds and soldered it back. that caused a hard reset. If this was your problem too, you can mount everything back.

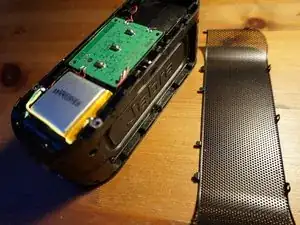

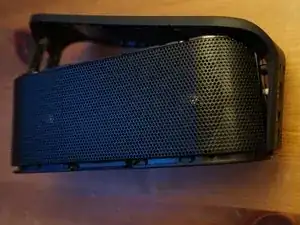

For removing the two grilles you have to loosen the four (2x2) black screws with a Torx 8 screwdriver at the top of the grilles. You have to pay attention to the two snaps in the middle of each grille.

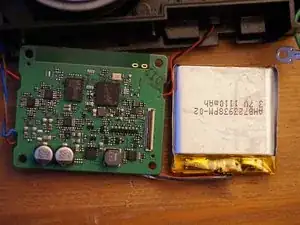

Loosen the Main PCB by removing the four black screw of the PCB.

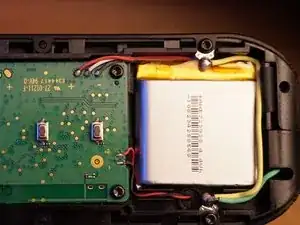

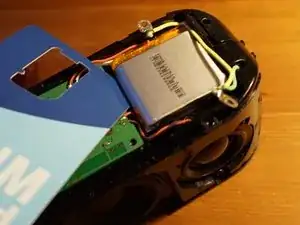

Battery - Gently lift the battery with a dull plastic part. The battery is put in place with an adhesive foil under it. Pay attention to not harm the battery or the cable routes under it.

Flat-Cable - the Flat Cable under the Battery is also hold in place with an adhesive tape and snap in at the bottom side of the PCB. Pay attention by lifting the PCB.

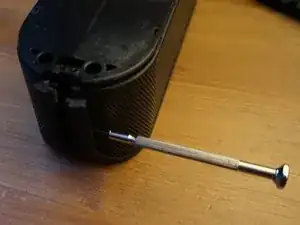

On the side of the "sub-woofer" you have to loosen 6 small srews with a Torx 6 screwdriver.

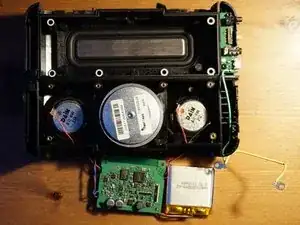

Now you can pull apart the two half sides of the housing. Suprise: The "Sub-woofer" is not active. It uses the volume movement of the other speakers. That's why the half sides are very well sealed to each other.
