Einleitung
Original from https://www.electronicslovers.com/2015/0...
Hello Electronic Lovers, in this tutorial I will show you how to repair a broken Power port of the JADOO box. You can Replace a Power Port or by connecting charger wires directly to the main circuit. We need 5v DC output from the charger or power supply to run JADOO box. I will recommend to change a Port instead of connecting wires directly.
Werkzeuge
Ersatzteile
-
-

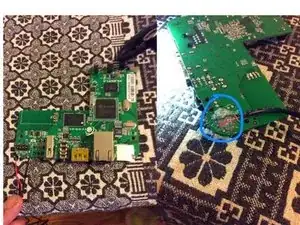

The box back cover doesn’t not has screw, just use any sharp thing, knife, in the edge of the box and pull the sharp thing , knife, a cover will be popped up and take out The circuit Board carefully.
-
-
-

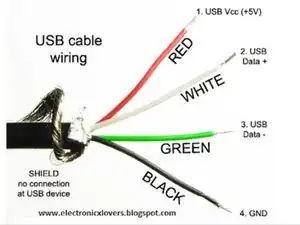

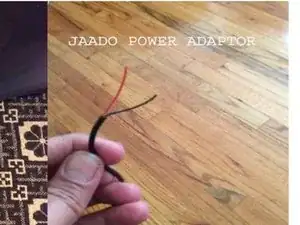

Cut the power cable and peel the wire and 2 wire should be appear black and red as shown in picture
-
-
-

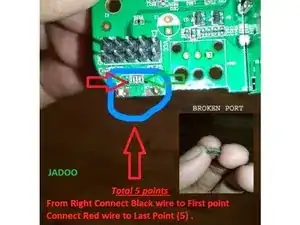

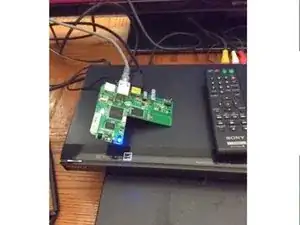

Black wire will be connected to the first point on the right side and Red wire will be the first point on left side of the board. If in case doesn’t work the change the step to the opposite.If board lights on its mean wire should be solder with the board.
-
To reassemble your device, follow these instructions in reverse order.
