Jam Voice Motherboard Replacement

Geschrieben von: Hope Bukhamseen
  • Kommentare: 0
Jam Voice Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

Replacement of the motherboard located inside the Jam Voice will be achieved by dismantling the device. The speaker and battery must be disconnected.

  1. vXvesMRaIA4Xpvti
    vXvesMRaIA4Xpvti
    jqheHYVFcFQTYjRW

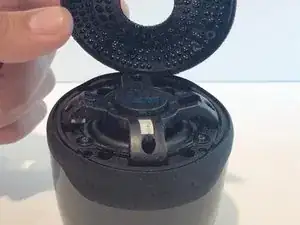

    • Insert the plastic opening tool underneath the mesh top.

    • Pry the cover open.

    • To reattach the cover, simply align the round posts on the bottom of the cover into the holes.

  2. 1I125wQxGihdnqcg

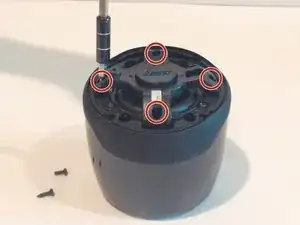

    • Remove the four 7mm Phillips screws from the plastic cover.

  3. L6EaKYfEfeAmkwVQ
    L6EaKYfEfeAmkwVQ
    fPWhCYbDEETCPtp3

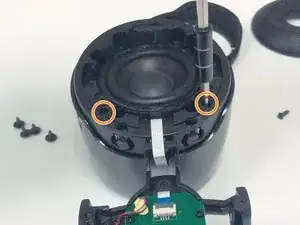

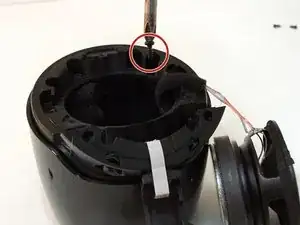

    • Remove the four 5mm Phillips screws that hold down the speaker in place.

    • Remove the two 6mm Phillips screws that hold down the plastic casing.

  4. dvjDVWJvTSMrCptN

    • Once all six screws are removed, use a Halberd Spudger or similar tool to lift up the speaker.

    • Pull the speaker up and out.

  5. NervECXDXUCo6yn3
    NervECXDXUCo6yn3
    vWH1m2I2VtCjJg2f
    n5ZIjJvtmyxTZFwI

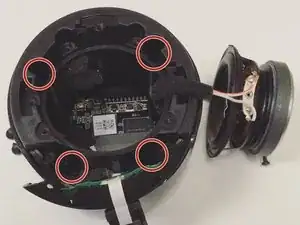

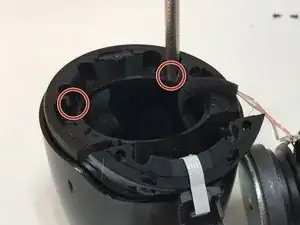

    • Remove the four 7mm Phillips screws to expose the motherboard.

  6. ViaN3XvOQirJCIrM

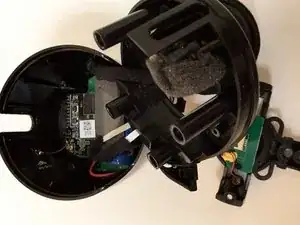

    • After removing all of the screws from the plastic cover, remove it by pulling up and out.

    • Be careful not to pull and damage any of the wires.

  7. sCnZsSVDYLtLVPGQ
    sCnZsSVDYLtLVPGQ
    ae3grSIdEVvjd6iW

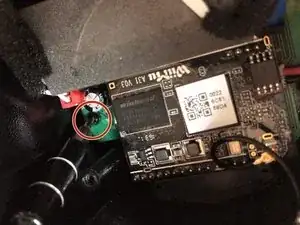

    • Remove the three 5mm Phillips screws that hold the motherboard in place.

    • After the screws are removed, place two fingers on the power button and Bluetooth button to push the motherboard out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
