Jazz HDV178 Camcorder zoom switch Replacement

Press down on the grooved plastic with your thumbs.

Push the back cover in the direction indicated by the small arrow on the grooved plastic. The back cover should slide right off.

Once you have the back cover off, the camcorder should look like this.

Look on the battery for a model number to assure that you acquire the correct replacement part.

The camcorder model number is located in the red box. Verify that you have a Jazz HDV178.

Take the battery out by pulling up on the bottom of the battery. You should be pulling from the side of the camera where the wrist strap is attached.

Take off camera mount by unscrewing the 4.5 mm screw in the hole.

This is the bottom of the camcorder near where the wrist strap connects.

Remove the 4.5 mm screw located near the battery slot.

Break the glue that attaches the lens cover to the camcorder by sliding the plastic prying tool underneath the circumference of the part.

After the glue is broken, you can remove the lens cover.

Use a small plastic pry tool to gently pry off the silver strip on the top of the camera.

Locate the side of the camcorder that is underneath the lens and on the opposite side of the wrist strap. Remove the silver strip using the same process as in the previous step.

Remove the two 4 mm screws that were hidden under the cover.

Pry off the rubbery cap that covers the buttons using the same process as the previous two steps.

Remove the three combined buttons so they do not become misplaced.

Using a firm hold on both sides of the camcorder, gently pull apart the two halves. Pressure should be evenly distributed across entire device.

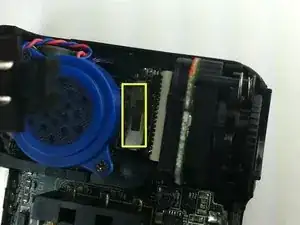

Use tweezers to lift the switch off of the pin.

Inspect the pin's motion.
