Einleitung
Follow this guide to effectively remove and replace the camera of Jazz UltraTab. The procedure takes 20-30 minutes. However, if the guide is followed accurately, the task will be accomplished with minimal damage to the device.
Werkzeuge
-
-

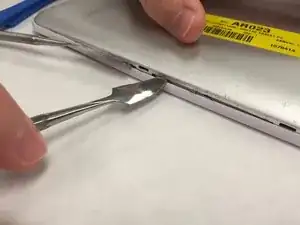

First step is to remove the screws. You can find the screws on top and bottom edge of the device.
-
-
-
There are two screws holding the camera. Remove them.
-

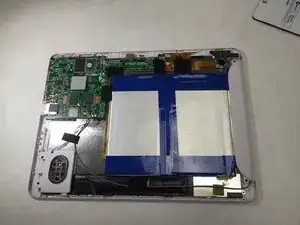

The next step is to lift the Touch Screen Digitizer (the black piece).
-

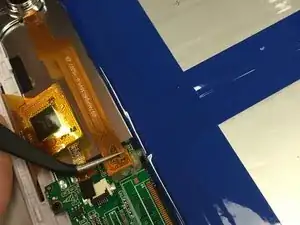

Slide out the Data Strip.
-
Detach the camera, and remove it.
-
Replace the camera, and reassemble.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
