Einleitung
This guide will demonstrate how to effectively remove and replace the headphone jack. This replacement will take 15-20 minutes. However, if the guide is followed to the letter, the task will be accomplished with minimal damage to the device.
Ersatzteile
-
-

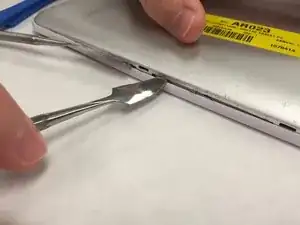

Use a Philips screwdriver to remove the four screws: two at the top and two at the bottom of the device.
-
-
-

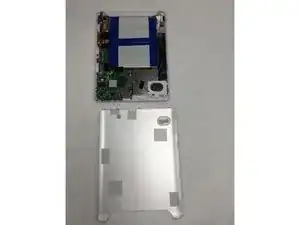

For your safety, remove the battery.
-

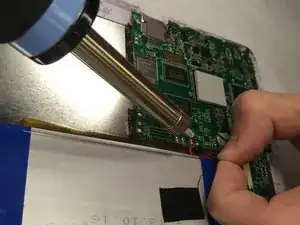

Using a solder iron, remove the wires connecting the battery to the motherboard.
-
-
-

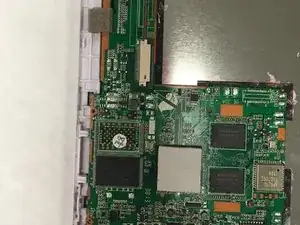

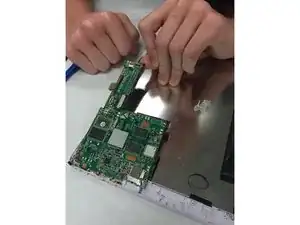

Remove the screw attaching the motherboard to the back panel. Gently remove the motherboard.
-
-
-

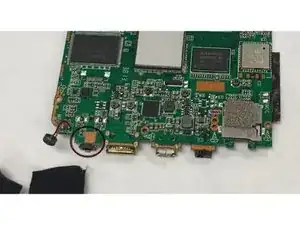

The headphone jack is attached to the motherboard, so the whole thing must be replaced.
-
With the new mother board, use these steps in reverse to reassemble the device.
-
To reassemble your device, follow these instructions in reverse order.
