John Frieda JFHA5R Reset and Test Buttons Replacement

Geschrieben von: Lindsey Farley
  • Kommentare: 0
John Frieda JFHA5R Reset and Test Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

The reset and test buttons can stop working over time. This replacement guide will show how to properly replace the reset and test buttons.

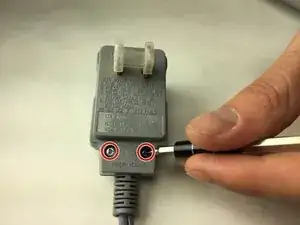

  1. WjH1HVNMFKHJbwZX

    • Make sure the Salon Shape brush is unplugged, and do not use metals once you have pried open the power plug.

    • Unscrew the two screws using a 3.0 mm bit triangle head on the back of the power plug.

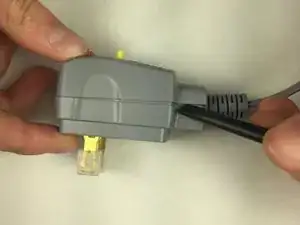

  2. PIGdK6mfWi3rKKSg

    • Use the spudger along either side to open up the power plug.

    • As the power plug is opened, the caution sticker on top of the plug will rip.

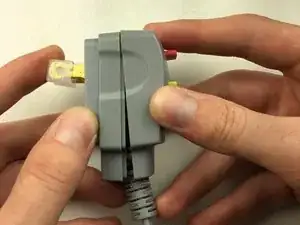

  3. DLUCxMETdEeZkBYv

    • Slide slightly up to remove the back cover of the power plug.

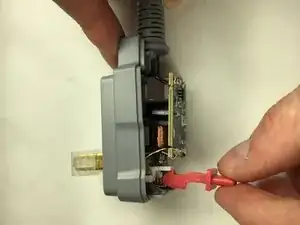

  4. 5MtbF2TC3iaIGmLo

    • Remove the red reset button by pulling it to the right.

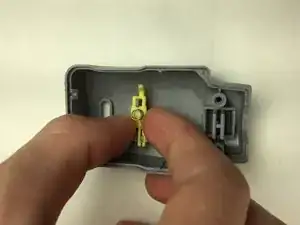

  5. alsTe2Xu23fHXWNN

    • Pull slightly left then up to remove the yellow test button.

Abschluss

To reassemble your device, follow these instructions in reverse order.
