Like many push mowers, the K-Gro Power Pro has reliability issues with the motor cable and tends to become brittle over time. This guide is a step-by-step plan, on how to replace the motor cable for this mower so that you can continue to operate your mower without having to buy a brand new one.
Werkzeuge
Ersatzteile
-
-

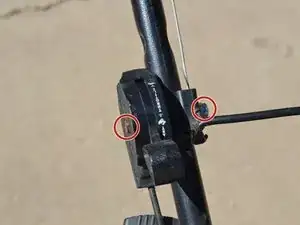

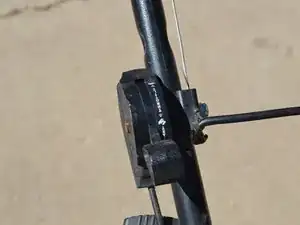

The throttle assembly is attached to the push bar with a 7/16" bolt and nut.
-

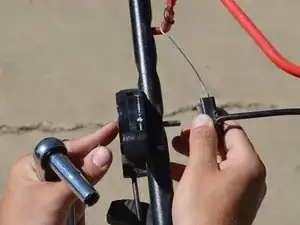

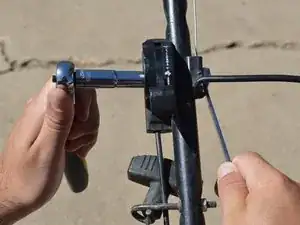

Using a 3/8" drive rachet wrench with a 7/16" socket and a 7/16" combination wrench, remove the nut.
-
Pull the plastic cable connection away from the framework.
-
-
-

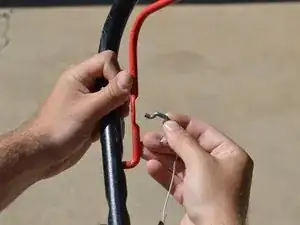

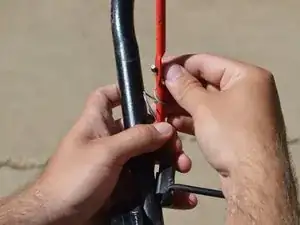

Pull the cable towards the handle to allow the wire to become loose. This will give you enough room to remove the hook.
-
-
-

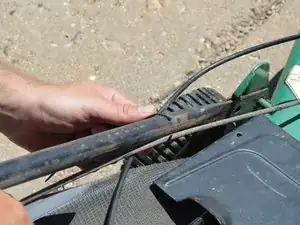

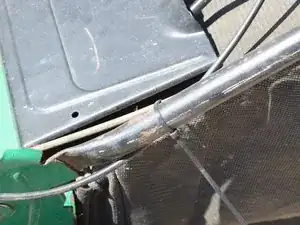

Following the cable down to the engine, you see that a zip tie holds the cable to the main handle.
-

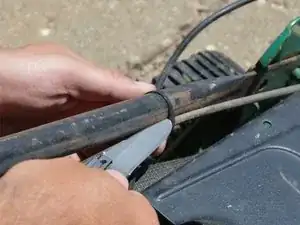

Use a box cutter, sharp pocket knife, or cutting pliers to cut the zip tie.
-
-
-

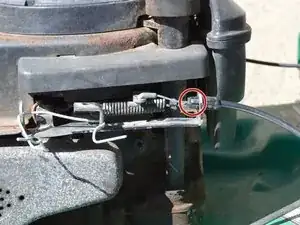

Locate the plastic fitting hooked to the steel housing of the engine.
-

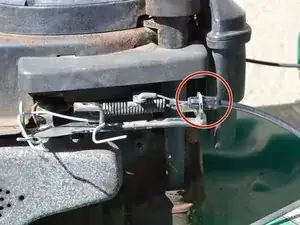

To the left of the fitting, you will see a steel sliding mechanism connected by a spring.
-

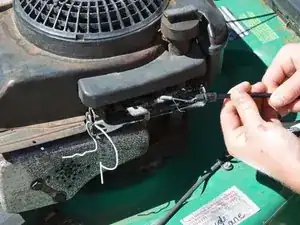

Squeeze the mechanism together to allow for slack in the cable wire.
-
-
-
On close inspection of the plastic fitting, you can see that there are two "wings" that can be pinched together.
-

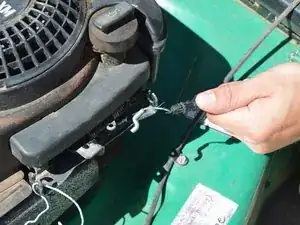

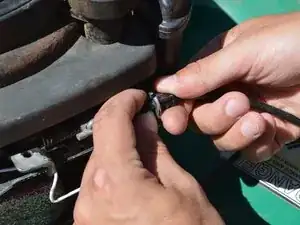

With the sliding mechanism squeezed and the wire slack, pinch the plastic wings together and push the fitting to the right out of the hole in the housing.
-
The loose wire can then be slid up through the groove in the steel.
-
-
-

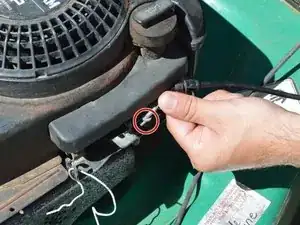

You can see that the only thing still holding the cable on is a hook attached to a spring loaded lever.
-
Remove the hook.
-
To reassemble your device, follow these instructions in reverse order.
