Einleitung
-
-

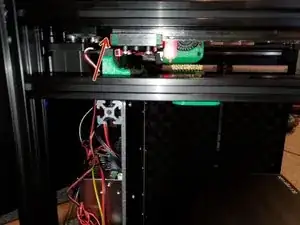

Press Home X. The hot end should move to the left towards the end stop. It will bump the end stop move to the right a few mm, than back left to the end stop and stop.
-
Measure the distance from the edge of the Top X Mount to the edge of the bearing block. Jog the hot end +10mm and re-measure. It should be 10mm larger.
-
Press Home Y. The hot end should move to the back towards the end stop. It will bump the end stop move to forward a few mm, than to the back to the end stop and stop.
-
Measure the distance from the edge of the rear corner to the edge of the bearing block. Jog the hot end -10mm and re-measure. It should be 10mm larger.
-
-
-
During bed leveling, you want the probe position to be at the center of the bed, not the nozzle. Once you have your X and Y coordinates calculated press Home Z
-
The probe(not the nozzle) will move to the center of the bed, Deploy the probe, raise the bed, stop once the probe is triggered, and lower the bed.
-
If your probe is slightly off center we need to correct it. Manually jog the hotend so the probe is in the center of the bed. Note the coordinates
-

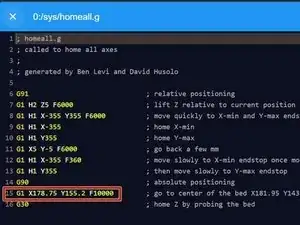

Take the coordinates off the web page and replace them in homez.g and homeall.g
-
G1 X178.75 Y155.2 F10000 ; go to first probe point
-
-
-
Manually jog the hot end
-
When you jog +X it will move to the right
-
When you jog +Y it will move towards the back.
-
